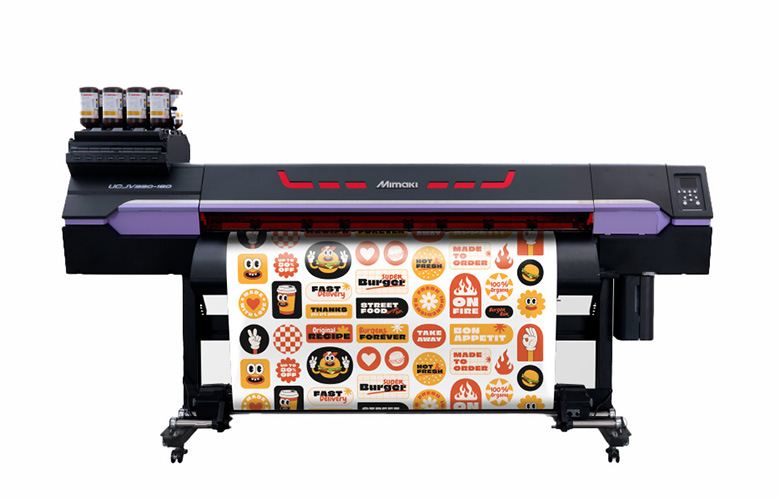

Mimaki UCJV330-130 UV-LED Integrated Printer/Cutter

The UCJV330 UV-LED printer/cutter offers versatile roll-to-roll printing with improved productivity and image quality for sign graphics. It prints at 301 sqft/hr for four colors or 194 sqft/hr with white and/or clear inks, enabling impressive turnaround times and increased efficiency. Mimaki's new ink ejection technology reduces color irregularities in high-density areas even at high speeds, maintaining image quality.

• Significantly improved image quality and productivity. Mimaki’s UV printing technology achieved high image quality even at high speeds.
• Clear ink that expands the design potential makes it possible to produce high value-added printed deliverables. Furthermore, 2.5D print and watermark print functions have been added.
• Support for up to 5-layer printing and it expands the range of applications and the added value of deliverables.
• Equipped UV curable ink that does not require drying time after printing and a post-print cut function. Can be used for a wide variety of applications such as store decorations, posters, labels, stickers, pop-ups, etc.
• “PICT” supports customers in improving the efficiency of their printing operations and production management by enabling them to visualize the operational status and performance of their printers from a PC or mobile device, even from a remote location.

Print head: Two in-line on-demand piezo heads
Print Resolutions: 600 dpi, 1200 dpi, 1800 dpi
Maximum Print Area: 53.5″ (1360 mm)
Maximum media width: 53.9″ (1370 mm)
Maximum Media Thickness: up to 1 mm
Maximum Media Weight: 99.2 lbs. (45.0 kg)

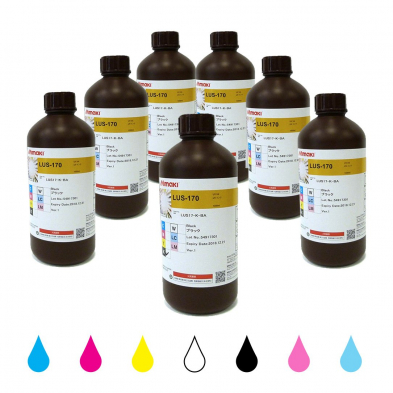

Ink Type: LUS-170, LUS-200
Interface: Ethernet 1000 BASE-T (recommended), USB2.0 Hi-Speed
Power Supply: Single phase AC100-120V±10% /12A or Single phase AC200-240V±10% /6A 50/60Hz±1Hz
Power Consumption: Max. 1,440W or less x1 / 800W (Continuous operation) / 4.5W or less (Sleep mode)
Operational Environment: Temp 68°–86° F (20-30° C), Humidity 35–65 % RH (Non condensing)
Dimensions (W × D × H): 103.9 x 31.5 x 58.3″ (2,640 x 800 x 1,480mm)
Weight: 478.4 lbs. (217 kg)
