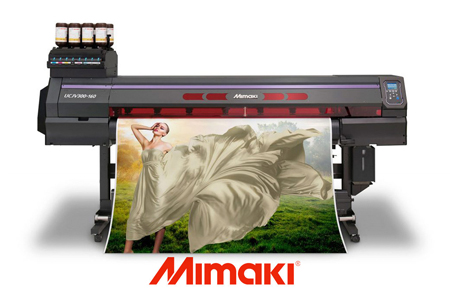

Mimaki UCJV300-160 UV-LED Integrated Printer/Cutter

PM-MIM-UCJV300_160

Ea. (1)


This revolutionary print-and-cut family offers in-line cutting capabilities and features multi-layer printing for transitional or double facing images. Graphics are instantly-cured, so you can efficiently create applications that will meet (and exceed) your customers’ needs.

• Available in 32”, 42”, 54” and 64”
• Speeds up to 277.7 SqFt/Hr
• Instantly-cured prints for shorter turnarounds
Interested in this product?
POA

Description

Description

Mimaki UCJV300 Series



The Mimaki UCJV300 series cut-and-print devices provide more than a simple print and cut experience: it goes beyond extraordinary to deliver an awe-inspiring range of applications and versatility. Create stunning transitional backlit panels that ‘change’ color schemes with the light source. Print and cut – or cut first then print – labels, decals, window clings, vehicle markings, etc., all on one unit. Flexible UV cure inks expand the possibilities for you to offer unique capabilities to keep you competitive

  • Available in 32”, 42”, 54” and 64” with print speeds up to 277.7 SqFt/Hr
  • Highest media versatility with unparalleled scratch resistance
  • Print and cut capability in one unit
  • Instantly-cured prints for shorter turnarounds and additional cost savings
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • 3M™ MCS™ Warranty on LUS-200 inks and Avery Dennison™ ICS™ Performance Guarantee on LUS-170/LUS-200 inks
  • RIP software RasterLink6 Plus with ID cut function included

Specifications

Specifications

Specifications

Print Resolutions

300dpi, 600dpi, 900dpi, 1200dpi
Print Speed (4 Color Mode)

UCJV300-75: up to 152.8 SqFt/Hr
UCJV300-107: up to 183 SqFt/Hr
UCJV300-130: up to 205.6 SqFt/Hr
UCJV300-160: up to 195.9 SqFt/Hr
Maximum Print Area

UCJV300-75: 31.5″
UCJV300-107: 42.9″
UCJV300-130: 53.6″
UCJV300-160: 63.4″
Maximum media width

UCJV300-75: 31.9″
UCJV300-107: 43.3″
UCJV300-130: 54″
UCJV300-160: 63.8″
Maximum Media Thickness

up to 0.04″
Maximum Media Weight

88.2 lbs.
Cut Speed

16.5″ sec
Cutter Types

Eccentric cutter, Blade for small character, Blade for reflective sheet, Blade for fluorescent sheet, Blade for PVC with low-pressure, Ball point pen
Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed
Power Supply

Single phase (AC100-120 / 200-240V±10%, 50/60Hz±1Hz) x2
Power Consumption

AC100V: 1.44kW or less x2 / AC200V: 1.92kW or less x2
Dimensions (W × D × H)

UCJV300-75: 81.496″ x 30.551″ x 58.071″
UCJV300-107: 92.913″ x 30.551″ x 58.071″
UCJV300-130: 103.543″ x 30.551″ x 85.071″
UCJV300-160: 114.2″ x 30.6″ x 58.1″
Weight

UCJV300-75: 317.5 lbs.
UCJV300-107: 354.9 lbs.
UCJV300-130: 379.3 lbs.
UCJV300-160: 414.5 lbs.



Technical Documents



Print Width: 13.4" (75)
  42.9" (107)
  53.5" (130)
  63.3" (160)
Speed: 277.7 SqFt/Hr (25.8 SqM/Hr)
Resolution: 1200 DPI (Max)
Max Media Thickness: 1.0mm or less
Max Roll Weight: 88lbs
Colors: C, M, Y, K, W, Lc, Lm
Curing Method: LED-UV
Ink Types: UV ink
Ink Supply: 1L or 250 ml bottles
Print Head: on-demand piezo head
Cut Speed: 300mm per sec.
RIP Software: RasterLink6
Interface: USB 2.0
Electrical:  AC 100-120V, 1PH, 50/60Hz
DIMs (LxWxH): 82.3 x 30.6 x 58.1 x 317.5 lbs.  (75)
  93.7 x 30.6 x 58.1 x 354.9 lbs.  (107)
  104.3 x 30.6 x 58.1 x 354.9 lbs.  (130)
  114.2 x 30.6 x 58.1 x 354.9 lbs.  (160)
