Finishing automation at PFS centers on eliminating manual touchpoints by integrating folding, stitching, and trimming into a single high-speed pass. We provide two industry-leading paths: Horizon for high-volume industrial automation and Morgana for versatile, digital-friendly booklet production.
Automated Finishing: Horizon vs. Morgana
1. Horizon (Industrial Automation Series) Horizon systems are the global benchmark for "smart finishing," utilizing full-gear automation to reduce makeready times to seconds.

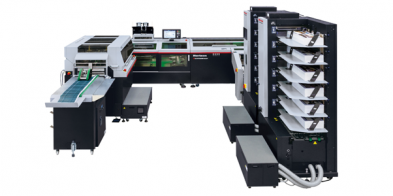

- StitchLiner Mark IV: This system performs signature scoring, folding, saddlestitching, and three-knife trimming in one pass at speeds up to 6,000 booklets per hour.
- High-Capacity Feeding: Supports normal and coated stocks from 52.3 to 350 gsm, ensuring compatibility with both offset and heavy digital covers.
- Integrated Trimming: Features standard professional three-knife trimming to produce "shelf-ready" booklets with no secondary processing.

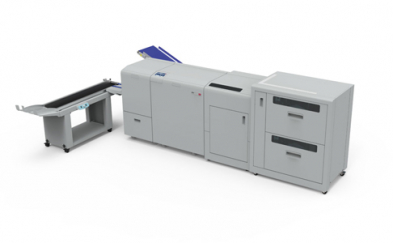

2. Morgana (Digital Versatility Series) Morgana equipment is engineered for the high-mix requirements of digital print environments, specializing in heavy-stock handling and long-sheet formats.
- BM 5000 Series: Designed for mid-to-high volume, this series handles extra-long sheets to produce landscape booklets and features up to 4 stitching heads for 2-up production.
- Toner Protection: Utilizes vacuum-assisted feeding and patented creasing technology to prevent toner cracking on the spines of heavy, digitally printed covers.
- Modular Finishing: Offers flexible configurations, including optional square-back folding and four-edge trimming to mimic the look of a perfect-bound book.
Solving Finishing Failure Points
Q: How do I prevent toner cracking on the spines of digital booklets? A: Cracking occurs when heavy or coated stocks are folded without a proper score. Horizon and Morgana systems utilize integrated creasing modules that compress the paper fibers before the fold, ensuring a clean, professional spine even on 350 gsm digital stocks.
Q: Is it possible to produce A4 landscape booklets in-line? A: Yes. The Horizon StitchLiner Mark IV supports a maximum landscape sheet size of 10.5" x 24.0", allowing for high-speed production of premium landscape-oriented marketing materials.
Q: What is the benefit of a "Three-Knife" trimmer over a single face trimmer? A: A face trimmer only removes the "creep" from the front edge. A three-knife trimmer, standard on the StitchLiner, trims the top, bottom, and face simultaneously. This ensures the booklet is perfectly centered and squared, which is critical for high-end catalogs and brand guides.
Technical Specification Matrix
|
Feature |
Horizon StitchLiner Mark IV |
Morgana BM 5000 |
|---|---|---|
|
Max Speed |
6,000 booklets/hr |
6,000 booklets/hr |
|
Max Page Count |
120 Pages (30 Sheets) |
200 Pages (50 Sheets) |
|
Trimming |
Standard 3-Knife |
Optional |
|
Stock Weight |
52.3 to 350 gsm |
Up to 350 gsm |
|
Format Support |
Portrait & Landscape |
A4 Landscape / Long Sheet |
Critical Risk Assessment
While both systems offer high-speed output, the Horizon StitchLiner is a signature-based system that is best suited for shops running offset or pre-collated digital work at maximum volume. The Morgana BM 5000 offers superior flexibility for "long-sheet" digital applications but may require more modular add-ons to match the integrated trimming capabilities of the Horizon. Relying on a face-trim-only configuration for thick booklets will result in a "stair-step" appearance on the top and bottom edges; therefore, we recommend the 3-knife or side-trim options for any professional-grade commercial work.
