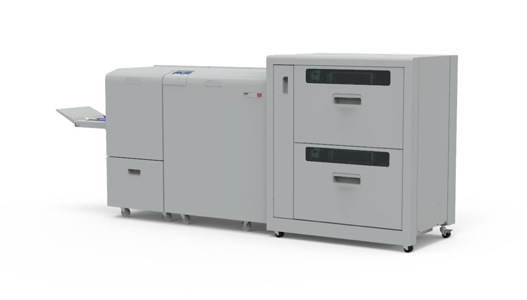

Morgana BM4000 Bookletmaker

GM-MSY-BM4000

Ea. (1)

The BM4000 is a versatile booklet maker designed to work with low to mid range volume digital production printers. It delivers exceptional quality and able to produce landscape booklets.

• Produce square folded booklets
• Corner stapled documents
• Up to 140 or 200 page book capacity
• Edge stapled documents in landscape or portrait


POA

Description

Description

Booklet making made easy

The BM4000 series produces consistently high booklet quality on all booklet sizes and media types.

• The basic configuration with hand feed capability enables users to make booklets in the offline mode.

• Heavy duty staple mechanism designed for durability. Maintenance free thanks to a patented solution that eliminates periodic service intervals.

• Operators can now compensate for skew caused when feeding long sheets, this can easily be adjusted in the color user interface on the fly.

A6 to A4 Landscape

The new system architecture enables customers to produce high quality booklets from A6 to A4 landscape, and has all the key processes needed to produce corner and edge staple, folding, spine forming, and full bleed trimming, all combined in one single, easy to use system. This new booklet maker offers the ability to produce the all new long sheets applications while maintaining the small and compact size.

Deliver Quality Applications

The BM4000 series uses the latest patented Plockmatic technologies to deliver top quality output. The base unit folds and staples booklets and corner or edge stapled sets up to 140 pages (35 sheets with the BM4035) or 200 pages (50 sheets with the BM4050). The set positioning mechanism enables the operator to easily adjust the staple and fold position on the fly.

Corner and edge stapling function as standard

Corner or edge stapling is the fast and easy solution for producing meeting notes, reference documents and hard copies of PowerPoint presentations etc.



Specifications

Specifications

Paper Size (min) 5.7" x 8.26"
Paper Size (max) 12,6" x 25.98"
Stapling Easy change, low maintainence, heavy duty cartridges
Staples per cartridge 5000
Paper weight (min) 64 gsm/16lb bond/15.5lb (some)
Paper weight (max) 300gsm / 82lb / 130lb (some)
Book thickness (min) 1 sheet or 80gsm
Book thickness (max) 35-50 sheets
Max. Finished Book 140-200 pages 80 gsm
