Afinia L901 Industrial Color Label Printer

GM-AFI-L901

Ea. (1)


The L901 combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly.” This makes the L901 perfect for long roll-to-roll print jobs or inline integration with label finishers, applicators, dispensers, and more.

• Inline & high-volume printing
• Fast print speeds (≤ 12 IPS)
• Super low ink costs
• Water-resistant inks available
Interested in this product?
POA

Description

Description

Powerful in Both Roll-to-Roll and Inline Applications
The L901 combines industrial design, exceptional image quality, and high production speeds with a new ability to service and maintain the printhead “on-the-fly.” This makes the L901 perfect for long roll-to-roll jobs or inline integration with label finishers, applicators, dispensers and more. Producing vibrant full-color prints in high resolution of 1600dpi is now more economical than ever, thanks to five high-capacity 250ml CMYKK ink cartridges delivering a new ultra-low cost per label.

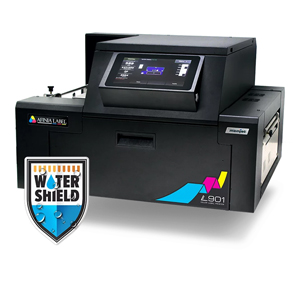

Water-Resistant Labels
The L901 Plus model has Watershield™ for increased moisture resistance. This optional technology is perfect for labels that may be exposed to moisture, such as chilled beverages, foods, chemicals, or pharmaceutical products.

Touchscreen Operation
Easily store files, run and pause jobs, or perform maintenance tasks through a user-friendly interface.

Mid-job printhead maintenance
Revolutionary print engine allows for mid-job cleaning. Crucial for full inline operation.

Industrial build quality
Designed for all-day printing—either roll-to-roll or inline—in a production environment.

Professional image quality & resolution
Exceptionally crisp text, barcodes, and images with vibrant color and rich blacks.

Specifications

Specifications

Printer

Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles
Inks: Dye-based, 250mL CMYKK (1.25L total)
Print resolution: 1600 x 1600 dpi – 1600 x 800 dpi
Print speed: 6 inches (152 mm) per second – 12 inches (305 mm) per second
Print width: 8.5 inches (216 mm)
Cutter/sheeter: Powered



Media

Media Size: Width: 2"–9" (50.8 mm–229 mm)
Length: 2"–48" (50.8 mm–1220 mm)
Thickness: Minimum 0.005" (0.13 mm)
Maximum 0.01" (0.3 mm, including liner)
Core diameter*: Requires 3" (76.2 mm) cardboard core
Unwind/Rewind*: 10" (250mm) outside diameter
Media sensors: Gap (movable), continuous, black mark
Die-cut gap: Minimum 0.125" (3.0 mm)
Maximum 0.3" (8.0 mm)
Black mark: 3 mm wide, 25.4 mm long on left
Substrates: Compatible with a wide range of paper,
polyester, polypropylene, and vinyl label stocks

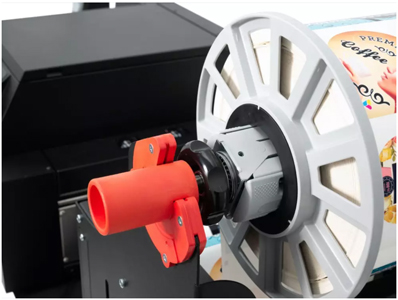

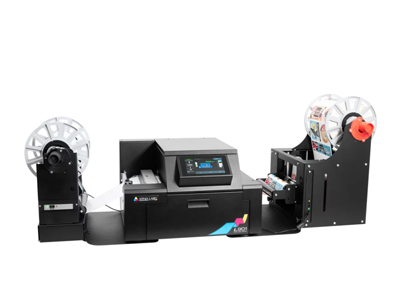

*with optional XL Unwind/Rewind system, shown below



General

Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating system: Windows 7, 8, and 10 (32 and 64 bit)
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
2D code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°–35° C (59°–95°F) at RH 20–80%
Overall dimensions**: 22.5" (572 mm) W, 20.5" (521 mm) D, 14" (356 mm) H
Weight: 85 lb (38.5 kg)
Rated voltage: AC 110V – 220V, auto-sensing
Warranty: One year
