Afinia L801 Commercial Color Label Printer

GM-AFI-L801

Ea. (1)


The L801 is a Memjet-powered industrial inkjet printer that is ideal for short- to medium-range print runs for prime and secondary labeling applications. It prints on continuous or die-cut stock from 2 to 8.5 inches in width, in full color, and at speeds of up to 60 feet per minute.

• High-volume printing
• Fast print speeds (≤ 12 IPS)
• Super low ink costs
• Best seller
Interested in this product?
POA

Description

Description

Minimize ongoing ink costs
Cost per label should be as important as printer cost when investing in a label printer. These ongoing costs are minimized by the L801’s industry-leading ink cost, which can be easily calculated using the included software. It holds 1.25 liters of ink to support large runs, and has easy-access doors for fast and simple media and ink replacement. An optional powered rewinder makes printing to finished rolls simple.

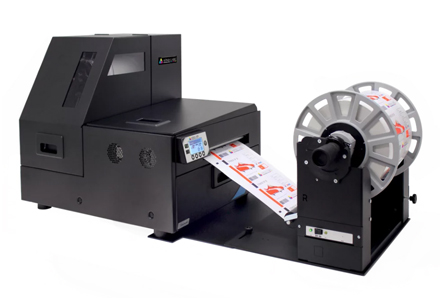

Integrated Rewinder
The L801 includes an integrated rewinder that accepts rolls up to 8 inches (203 mm) in diameter. The steel cover protects your media from dust and debris, reducing the potential for print issues and extending printhead life. Roll media is consistently and evenly fed media to the printer.

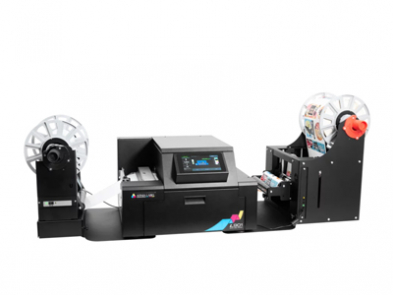

Roll-to-roll label printing
The optional rewinder pairs perfectly with the L801 to allow for continuous, roll-to-roll label production. Easily handle rolls up to 8 inches in outside diameter for high-volume jobs and reduced media costs. It’s a recommended addition for companies that experience high usage or heavy duty jobs.

Print from the L801 - the best color label printer for businesses
Like the L801, the rewinder can handle label sizes up to 8.5″ wide and rolls with up to 8.0″ outside diameter. It gives you the ability to choose the direction of rotation to situate labels to be either face-in or face-out.

Once rewinding is complete, simply remove the core holder and completed roll.

Memjet Waterfall Technology
The L801 Industrial Color Label Printer is a digital label printer that uses Memjet technology, allowing you to print high-impact, full-color output at up to 60 ft/min (18 m/min). Memjet’s stationary “waterfall” printhead technology allows paper to move quickly through the printer, while maintaining excellent print resolution.

High quality & resolution
Using the L801 industrial color label printer, you can print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK (two black ink cartridges), the L801 offers exceptional color and rich blacks, giving you the ability to print with better contrast.

Low cost of ownership
Afinia Label Memjet label printers allow you to save on consumables. The L801 holds 1.25 liters of ink to support large runs, and offers an industry-leading low ink cost. You can request a free printed sample to determine the exact cost of your labels and to see and feel the quality for yourself.

Specifications

Specifications

Printer


Media sensors: Gap, continuous, black mark
Die-cut gap: Minimum 0.125" (3.0 mm)
Maximum 0.3" (8.0 mm)
Black mark: (3 mm wide, 25.4 mm long on left)
Substrates: Compatible with a wide range of paper,
polyester, polypropylene, and vinyl label stocks



Media


Media/Label Size: Width: 2"–8.5" (50.8 mm–216 mm)
Length: 2"–48" (50.8 mm–1220 mm)
Media Thickness: Minimum 0.005" (0.13 mm)
Maximum 0.01" (0.3 mm, including liner)
Core diameter: Requires 3" (76.2 mm) cardboard core
Outside diameter: Maximum 8" (203 mm)
Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles

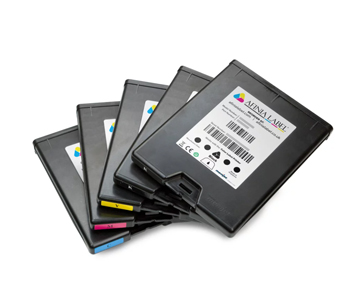

Inks: Dye-based, 250 mL CMYKK (1.25 L total)
Print resolution: 1600x1600 dpi or 1600x800 dpi
Print speed: 6"–12" per second (152 mm–305 mm)
Print width: 8.5" (216 mm)
Cutter/sheeter: Powered



General


Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating system: Windows 7+ (32 and 64 bit)
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
2D code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°–35° C (59°–95°F) at RH 20–80%
Overall dimensions: 18.9" (480 mm) W, 19" (485 mm) D, 21.1" (535 mm) H
Weight: 83 lb (37.6 kg)
Rated voltage: AC 110V – 220V, auto-sensing
Warranty: One year
