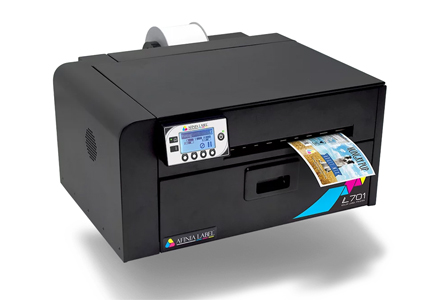

Afinia L701 Digital Color Label Printer

GM-AFI-L701

Ea. (1)


The intuitive L701 is a great option for small- to mid-sized companies looking to print their own full-color labels in house. The Memjet-powered stationary printhead provides speed, industrial reliability, and stunning image quality. Five large (200ml CYMKK) ink cartridges offer low label costs and high return on investment, making the L701 ideal for short- to medium-range print runs for retail, inventory, and product identification applications.

• Mid-volume printing
• Medium-fast print speeds (≤ 8 IPS)
• Low ink costs
• Lowest initial cost Memjet printer
Interested in this product?
POA

Description

Description

The L701 Color Label Printer—our lowest initial cost offering with Memjet technology—allows you to print high-impact, full-color labels without breaking the bank. The L701 is a great fit for multiple-printer installations or applications where high performance, low initial investment, and a smaller footprint are all required.

The intuitive L701 is a great option for small- to mid-sized companies looking to print their own full-color labels in house. The Memjet-powered stationary printhead provides speed, industrial reliability, and stunning image quality. Five large (200ml CYMKK) ink cartridges offer low label costs and high return on investment, making the L701 ideal for short- to medium-range print runs for retail, inventory, and product identification applications.

High Quality & Resolution
Get all the benefits of Memjet in a consolidated form factor. Memjet’s stationary “waterfall” printhead technology allows for blank label material to move quickly through the printer while maintaining excellent print resolution. Print at up to 1600 x 1600 dpi for vivid, eye-catching labels. By using CMYKK, the L701 offers exceptional color and rich blacks, giving you the ability to print with excellent contrast.

Included Unwinder
The L701 includes a unwinder attachment that accepts rolls up to 6 inches (150 mm) in diameter. Roll media is consistently and evenly fed media to the printer.

Fanfold Media Support
The L701 is perfect for use with fanfold media. Simply remove the roll rewinder attachment and place a stack or box of inkjet-compatible fanfold labels behind the printer. Feed it in as normal, and print. A clean stack of finished labels is created as the first few fall into place.

Low Label Costs
The Afinia Label L701 holds five large 200mL ink cartridges to support mid to long runs while reducing per-label costs. You can send us your artwork to see how much you can save, or see how the L701 has a great return on investment

Specifications

Specifications

Printer


Print method: Memjet Waterfall Printhead Technology® 11 Integrated Circuit (IC) Chips – 70,400 nozzles
Inks: Dye-based, 150mL CMYKK (750mL total)
Print resolution: Up to 1600 x 1600 dpi
Print speed: Up to 8 inches (203 mm) per second
Print width: 8.5 inches (216 mm)
Cutter/sheeter: Powered



Media


Size: Width: 2"–8.5" (50.8 mm–216 mm)
Length: 2"–40" (50.8 mm–1,016 mm)
Thickness: Minimum 0.005" (0.1 mm)
Maximum 0.01" (0.3 mm, including liner)
Core diameter: Requires 3" (76.2 mm) cardboard core
Outside diameter: Maximum 6" (150 mm) w/ included unwinder
Media sensors: Gap, continuous, black mark
Die-cut gap: Minimum 0.125" (3.0 mm)
Maximum 0.3" (8.0 mm)
Black mark: (3 mm wide, 25.4 mm long on left)
Substrates: Compatible with a wide range of paper,
polyester, polypropylene, and vinyl label stocks



General


Interfaces: USB 2.0, TCP/IP (Manual IP configuration or DHCP), GPIO available for external device control
Operating system: Windows 7, 8, and 10 (32 and 64 bit)
Barcode font: 1D Barcode at least Grade B (Code39) with 10mils bar width
2D code printing: 2D Barcode at least Grade B (PDF417) with 10mils cell size
Operating temperature: 15°–35° C (59°–95°F) at RH 20–80%
Dimensions - with unwinder: 21.6" (549 mm) W, 26.7" (679 mm) D, 11.2" (285 mm) H
Dimensions - printer only: 20.1" (510 mm) W, 15.2" (385 mm) D, 11.2" (285 mm) H
Weight - printer only: 66 lbs. (30kg)
Rated voltage: AC 110V – 220V, auto-sensing
Warranty: One year
