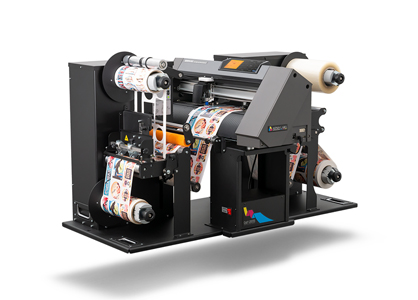

Afinia DLF-220S Mini Digital Label Finisher

Unwind, laminate, contour cut, remove waste, slit, and rewind in one simple process to create professionally-finished labels. These solutions are perfect for on-demand, short-run label finishing.

Convert labels into finished rolls, ready for application. The DLF’s cutting process requires no physical dies. Cut paths can be varied as often as desired, giving users the flexibility to create any label shape, on the fly.

Plotter Specifications

Data interface: USB 2.0
Linear cut speed: Dependent on graphic
Programmable cutting force: 20 gf - 300 gf in 31 steps (Max 300 gf)
Test cut function: Yes
Cut to registration: Single point registration black mark (4 mm (0.16”) square)
Cut ability: Both printed and unprinted media
Interface & Software: DLF Software (Windows OS) cutter management tool.
Power requirements: 100-240 VAC, 240 watts

Other Specifications

Input / Output max.roll diameter: 200 mm (7.87”)
Min. media width: 110 mm (4.33”)
Max. media width: 225 mm (8.86”)
Max. cutting width: 200 mm (7.87”)
Min. / Max. label length: 10 mm (0.39”) / 300 mm (11.8”)
Min. slitting width: 19 mm (0.75”)
# of slitting blades: up to 8
Dimensions: L = 130 cm (51.18”) H = 65 cm (25.60”) W = 90 cm (35.43”)
Weight (estimated): 200 kg (440 lb)
Roll core size: 76 mm (3”)
Maximum media thickness: 0.25 mm (10 mil)
Max. cut speed: 600 mm/s (24 in/s) in all directions
Warranty: One year parts and labor. Usage limitation may apply
