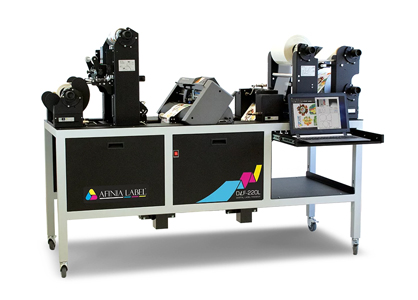

Afinia DLF-220L Digital Label Finisher

Afinia’s Digital Label Finishers are systems that unwind, laminate, digitally contour cut, remove waste, slit, and rewind in one simple process to create professionally finished labels. These solutions are perfect for finishing on-demand, short-run label jobs printed on a digital color label printer.

This full-size finisher is available in two widths (8.6 in/220 mm and 13.75 in/350 mm web widths) and with or without lamination capability.

Print shops are also using digital die cut label finishing to offload short runs from larger, more expensive equipment or to add the capability to produce labels in-house—allowing for faster turnaround, better quality control, and more profitability on lower-volume label runs.

Plotter Specifications

Data interface: USB 2.0
Linear cut speed: Dependent on graphic, 2 squares across 80x80 mm (3.15”x3.15”) = 34 labels per min.
Programmable Cutting Force: 20 gf - 300 gf in 31 steps (Max 300 gf)
Test cut function: Yes
Cut to registration: Single point registration black-mark (4 mm (0.16”) square)
Cut ability: Both printed and unprinted media
Interface & Software: DLF-220 Software (Windows OS) cutter management tool. Plug-ins for CorelDraw and Adobe Illustrator.
Power requirements: 100-240 VAC, 240 watts

Other Specifications

DLF-220: Input / Output max. roll diameter 250 mm (9.84”)
Minimum media width: 1 10 mm (4.33”)
Maximum media width: 225 mm (8.86”)
Maximum cutting width: 200 mm (7.87”)
Minimum slitting width: 19 mm (0.75”)
Number of slitting blades: up to 8
Lamination module: NO
Dimensions:L = 150 cm (59.05”) H = 145 cm (57.06”) W = 70 cm (27.56”)
Weight (estimated): 180 kg (396 lb)
Roll core size: 76 mm (3”)
Minimum / Maximum label length: 10 mm (0.39”) / 431.8 mm (17”)
Maximum media thickness: 0.25 mm (10 mil)
Maximum cut speed 600 mm/s: (24 in/s) in all directions
Warranty: One year parts and labor. Usage limitation may apply

DLF-220L

Input / Output max. roll diameter: 250 mm (9.84”)
Minimum media width: 1 10 mm (4.33”)
Maximum media width: 225 mm (8.86”)
Maximum cutting width: 200 mm (7.87”)
Minimum slitting width: 19 mm (0.75”)
Number of slitting blades: up to 8
Lamination module: YES
Dimensions: L = 200 cm (78.74”) H = 145 cm (57.06”) W = 70 cm (27.56”)
Weight (estimated: 235 kg (518 lb)
Roll core size: 76 mm (3”)
Minimum / Maximum label length: 10 mm (0.39”) / 431.8 mm (17”)
Maximum media thickness: 0.25 mm (10 mil)
Maximum cut speed 600 mm/s: (24 in/s) in all directions
Warranty: One year parts and labor. Usage limitation may apply
