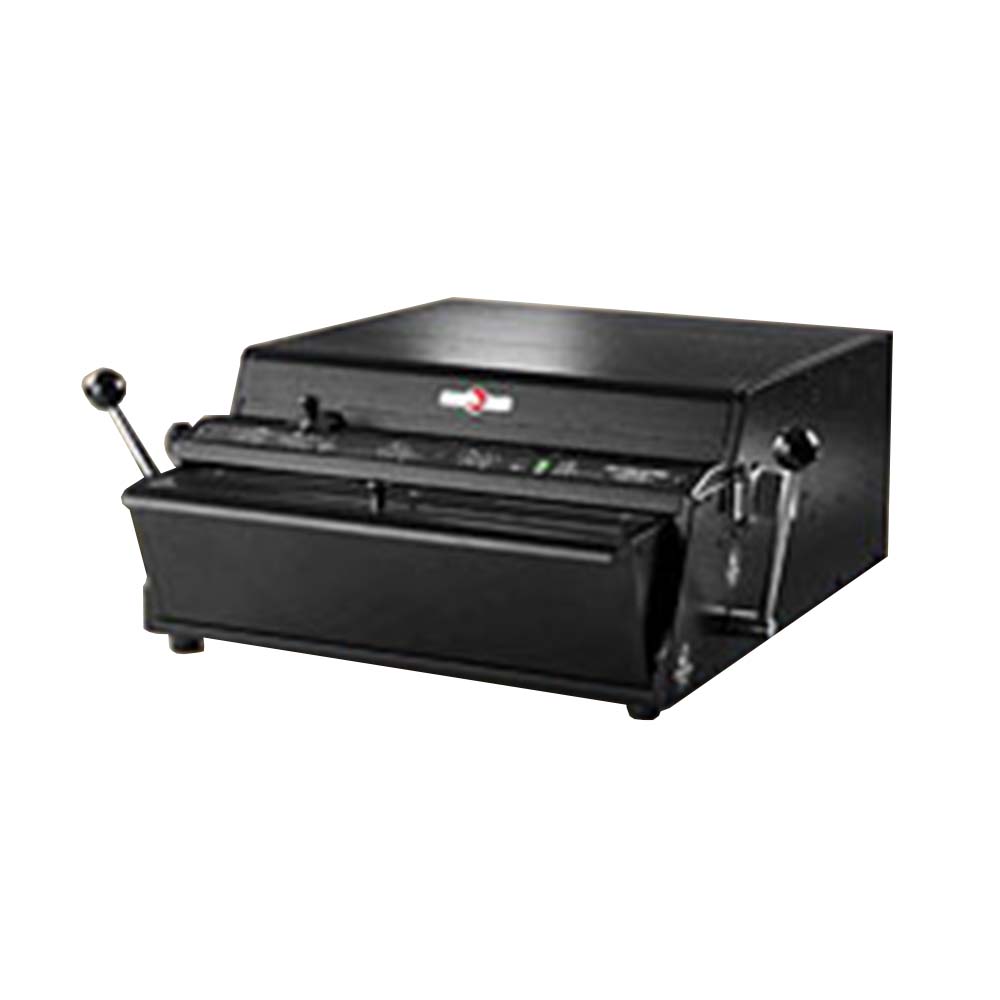

Rhin-O-Tuff ONYX HD 7700 Ultima Heavy Duty Punch

The Rhin-O-Tuff HD7700 Ultima Heavy Duty Electric Punch is an exceptional tabletop punch that has no equal. The patented Quick Change Die System has all of the features you have come to expect from Rhin-O-Tuff, making this a Performance Design Punch that will handle any size project, large or small. Binding machines can be added to your vertical HD7700 system. The HD4470 for plastic comb binding, EWC 8370 , HD8370, HD8000 for wire binding or the HD4170 for plastic coil binding. Optional Mounting Brackets allow it to be securely attached or use the binding units freestanding to create separate punch and bind stations.

Product Details

• The Patented Auto Reverse Feature triggers an auto reversing function to reduce jamming in the punch when an overload detected.
• 14" (356mm) open ended extra capacity die.
• U-View waste tray holds up to 150% more waste than any other tabletop punch and eliminates troublesome overfills.
• New Diagnostic Display Lights give indications of important machine conditions.
• Rated up to 55 sheets or 110 pages of 20 pound (80gsm) paper. The number of sheets depends on the paper weight and punch pattern used.
• An automatic and manual reverse feature which provides extra insurance to reduce costly downtime & expensive service calls due to overload jams.
• 25 cycles per minute.
• Punch up to 5 plastic Mylar sheets regardless of hole pattern (depending on Mylar mil thickness).
• Patented "QCDS", Quick Change Die System.
• All punch pins easily disengage.
• "Accu-Set" paper adjustment knob for fine adjustments on odd paper sizes.
• Smooth, Quiet, Power on Demand Operation.
• Choose the Standard Foot Pedal and Palm Switch or the optional Versa Switch.
• The HD7700 has more than 20 interchangeable dies available with 12 standard hole patterns. Including: Comb, Wire-O® Twin Loop, Plastic Coil, GBC VeloBind, and 3 Hole Loose Leaf. (Each die is priced separately).
• Extremely durable all metal construction.
• Extra high capacity Waste Chip Tray with Clear View Access. No sensors needed.
• CE approvals.
• 3 Year Manufacturer's Warranty

Punching Method: Electric

Punching Format: Vertical

Max Punch Capacity: 55 Sheets of 20 lb. paper

Max Binding Edge: 14"

Disengageable Dies: Yes

Operation: Foot Pedal or Palm Switch

Dimensions: 21" W x 22.5" D x 8.5" H

Shipping Weight: 103 lbs.(46.3 kgs)
