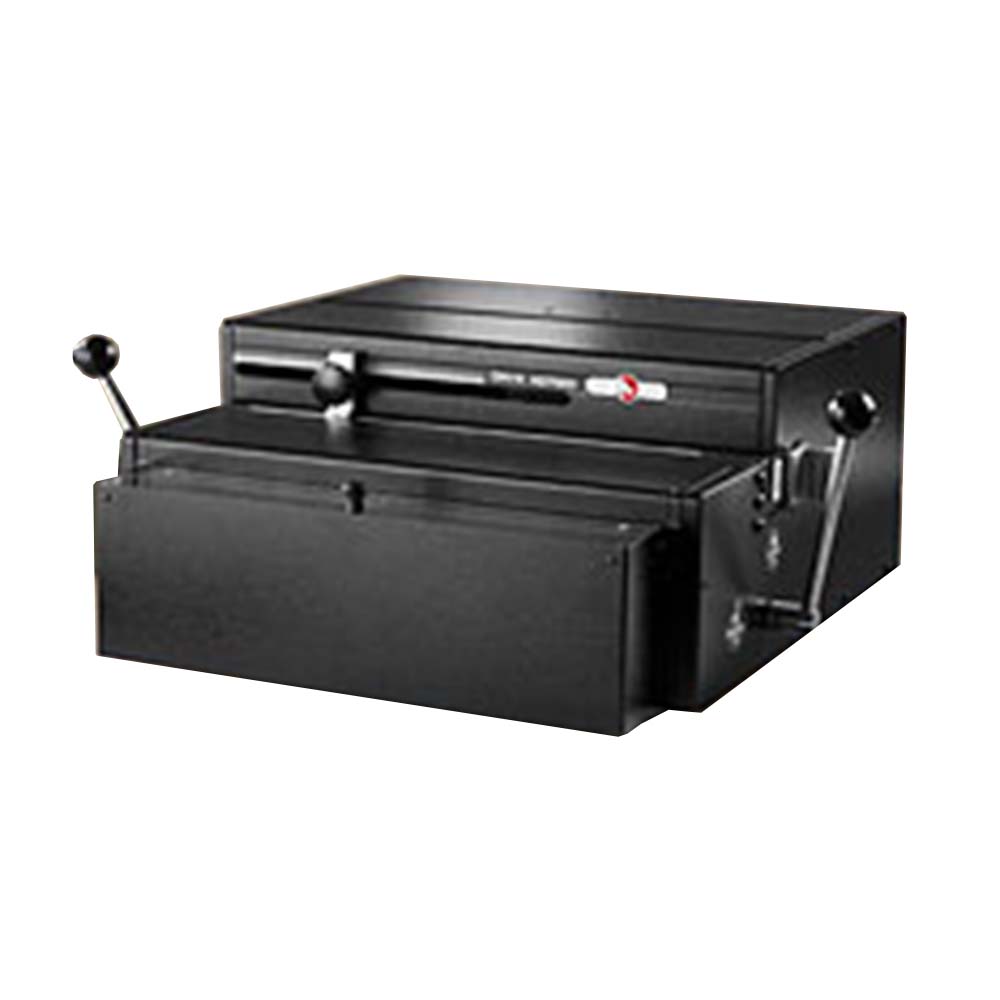

Rhin-O-Tuff ONYX HD 7000 Heavy Duty Punch w/QCDS

The HD7000 is a 14 inch (356 mm) open-ended punch that features the patented “quick change” die system for changing punch patterns in 30 seconds; no tools required and no bolts or screws to replace or misplace. The HD7000 was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions. With a three year warranty, this is truly the industry standard. Rated up to 40 sheets or up to 80 pages of 20 pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used. Designed for mid to high volume commercial and corporate use.

• Patented Auto Reverse Feature
• Our Overload Detection Feature triggers an auto-reversing function to reduce jamming in the punch
• Patented “QCDS,” Quick Change Die System
• 12 Standard Interchangeable Die Patterns Available (Each die is priced separately)
  • Comb
  • Wire Loop
  • Plastic Coil
  • Velo Bind™ GBC
  •  3 Hole Loose Leaf
• 25 Cycles Per Minute
• 14 inch (356 mm) Open Ended Punching, Allows for Wider Applications
• All Punch Pins easily disengaged
• Easy, “Paper to Pin,” sight alignment, for balanced hole to edge margins on odd-sized applications
• Standard Foot Pedal, optional Versa Switch, or Palm Switch
• 3 Year Warranty
• Smooth, Quiet, Power on Demand Operations
• Large EZ View Chip Tray
• All Metal Fabrication
• Pre-set Paper Stop Guide for easy setup

Available Die Sets

More than 20 Interchangeable Dies with 12 Standard Hole Patterns

Punch Capacity

Up to 40 Sheets or 80 Pages of 20 lb paper

Punch Length

14" Punching Length with 14" Open Ended Extra Capacity Die

Fully Disengageable Pins

Yes

Weight

100 lbs

Compatible Supplies and Accessories

Plastic Spiral Binding Coils, Die Sets For Rhin-O-Tuff HD6500 and HD7000

Actual Machine Dimensions

 8" x 17" x 17"

Actual Machine Weight

87

Shipping Length

27

Shipping Width

25

Shipping Height

4

Shipping (Web) Weight

100 lbs

Manufacturer's Warranty

3 Year Manufacturer's Warranty
