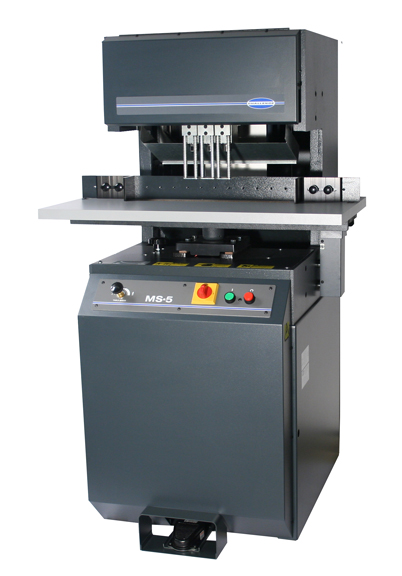

Challenge Multiple Spindle Drill W/3-Heads

GM-CMC-MS_5

Ea. (1)

Drilling of up to 5 holes (3 heads come standard) in a single stroke. Handle multiple hole patterns in a single stroke. 2½" drill capacity.

• Side Guide Adjustments
• Backgauge Adjustments
• Easy Drill Length Adjustment
• 2" Hollow Drill Bits Available in 13 sizes
• 2-1/2" Hollow Drill Bits Available in 4 sizes
POA

Description

Description

• Multi-Hole Drilling - up to 5 Holes
• Side Guide Adjustments
• Backgauge Adjustments
• Easy Drill Length Adjustment
• 2" Hollow Drill Bits Available in 13 sizes
• 2-1/2" Hollow Drill Bits Available in 4 sizes
• Hollow Drill Bits Also Available With Teflon Coating

Specifications

Specifications

Number of Drill Heads 2 to 5
Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm
Center to Center Distance Maximum 15" / 38 cm
Center to Center Minimum (standard) 1-7/8" / 48 mm
Center to Center Minimum (optional narrow heads) 1-3/8 / 35 mm
Maximum Drilling Capacity 2-1/2" / 63 mm
Strokes per Minute (adjustable) Up to 18
Backgauge Adjustment 0 to 5" / 0 to 13 cm
Vertical Adjustment of Individual Heads 1/4" / 6 mm
DIMENSIONS
Table Size 17-3/4" x 34" / 45 x 87 cm
Table Height 37" / 94 cm
Overall Height 56" / 142 cm
Floor Space Needed 36" x 36" / 92 x 92 cm
Net Weight (approximate) 830 lbs / 374 kg
Shipping Weight (approximate) 910 lbs / 410 kg
ELECTRICAL
Standard -

1 Phase, 60 Hz, AC.   Pump: 1/2 HP.  Spindle Motor: 1-1/2 HP.
208/230 Volts, 18 Amps (service size 30 Amps)

Optional -

3 Phase, 50 Hz, AC.   Pump: 1/2 HP.  Spindle Motor: 1-1/2 HP.
208/230 Volts, 12 Amps (service size 20 Amps)
