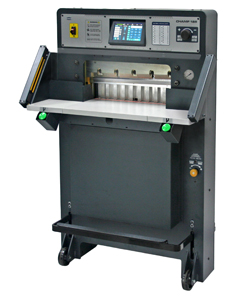

Challenge CHAMP 185Pro Paper Cutter

GM-CMC-CHAMP185PRO

Ea. (1)
Proudly manufactured in Michigan, USA, the CHAMP 185 series delivers hydraulic powered strength and durability with easy to use controls to the 18” cutter market that is crowded with weaker electric motor powered machines. The CHAMP's strong ¼” thick cold rolled steel weldment frame offers a superior design allowing operators to cut today's hard stocks accurately in piles of up to 3.25” high.

• Adjustable angle 7.1” color touch screen controller
• Micro adjustment backgauge with hand knob
• Repeat and loop commands to simply program repetitive cut sequences
• Instant job generation from cuts history (cut-and-record)
POA

Description

Description

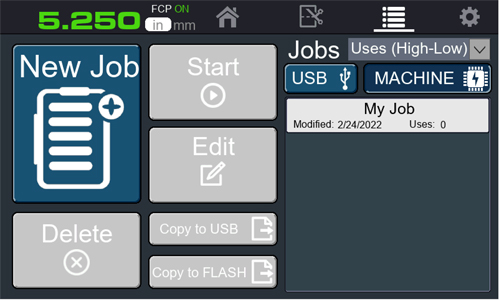

The new Pro system provides intuitive controls designed for both new users and cutting professionals. The 7.5" full-color display with quick-response capacative touch enables fluid controls and more powerful features.

The Pro systems includes fast backgauge positioning, continous cut history (cut-and-record), advanced job creation, USB & built-in memory, step-and-repeat, instant unit conversion (in-mm), and many more features. Get the most out of your machine with the CHAMP 185Pro.

Proudly manufactured in the USA, the CHAMP 185Pro continues our legacy of providing assurance you made the right decision.

Machine Features

  • 18.5” cutting width / 3.25” clamp opening
  • Hydraulic clamping and cutting – 2,350 lbs. pressure
  • 120 volt 1-phase power / optional 220 volt motor
  • Adjustable clamp pressure
  • Maximum cut 19” / minimum cut .75” (or 1.75” with false clamp plate)
  • Red LED optical cut line-light indicator
  • Machine dimensions 33.5” wide (tilt shield) x 42” deep
  • Optional false clamp plate
  • Optional pre-clamp foot pedal

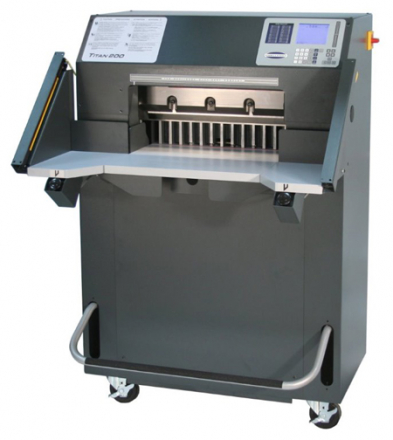

  • Optional light beam system replaces the front tilt shield
  • One HHS knife, three cutting sticks, wood jogging aid, tool kit, knife change holder assembly, and operators manual included
  • 1-year warranty
  • CE certified
  • Manufactured in the USA



Pro System Features

  • Adjustable angle 7.1” color touch screen controller
  • Programmable with 99 programs / 99+ cuts per program memory
  • Clean layout and easy to navigate software
  • Micro adjustment backgauge with hand knob
  • Repeat and loop commands to simply program repetitive cut sequences
  • Custom prompt creation in jobs
  • Simple program adjustments to address wandering registration by the printer
  • USB port for expandable memory storage

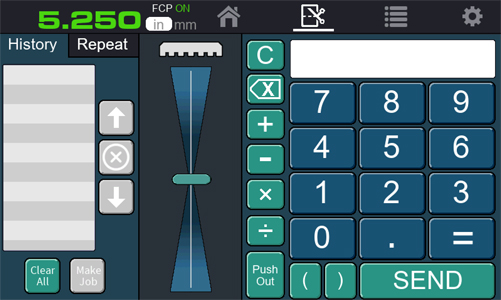

  • instant job generation from cuts history (cut-and-record)
  • built-in step-and-repeat function

Specifications

Specifications

General
Maximum Cutting Width: 18-1/2” / 470 mm
Minimum Cut: without false clamp plate 3/4” / 19mm
Minimum Cut: with false clamp plate 1-3/4” / 45mm
Maximum Cut Depth: 19” / 482mm
Clamp Opening: without false clamp plate 3-1/4” / 82mm
Clamp Opening: with false clamp plate 3” / 76mm
Table Space in front of knife: 13-1/4” / 337mm

Dimensions
Overall Height: 56” / 1423 mm
Overall Width (no side tables): 33-1/2” / 851 mm
Overall Depth: 43-1/2” / 1105 mm
Net Weight (approx.): 775 lbs. / 342 kg
Shipping Weight (approx.): 920 lbs. / 417 kg

Electrical
Standard: 120 Volt AC, 60 Hz, 1 Phase, 14 Amp (service size: 20 Amp) - power cord included
Power option 1: [Optional] 220 Volt AC, 60 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
Power option 2: [Optional] 230 Volt AC, 50 Hz, 1 Phase, 10 Amp (service size: 20 Amp) – power cord included
