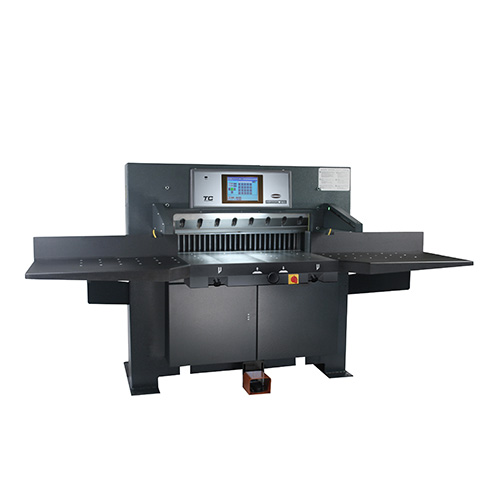

Challenge 370TC Paper Cutter

GM-CMC-370TC

Ea. (1)


The Challenge Champion 370 continues the company's well known excellence for innovation, reliability and durability. The industry workhorse for over thirty years. Powerful, accurate, hydraulic clamping and cutting with a 37" cut width and 5 1/8" clamp opening.

• Up to 24 cuts per minute
• Virtually maintenance-free design
• 37" cutting width, 5 1/8" clamp opening
• Hydraulic clamping & cutting
Interested in this product?
POA

Description

Description

  • Up to 24 cuts per minute
  • Virtually maintenance-free design
  • Fully-adjustable knife bar gibs (front and rear)
  • Electronically-adjustable and programmable clamp pressure
  • Low-pressure pre-clamping protects operator from injury (less than 66 PSI)
  • 37" Cutting Width, 5-1/8" Clamp Opening
  • Hydraulic Clamping & Cutting
  • Power Foot Pedal Clamping
  • Line-Light Cut Position Indicator
  • Lighted Work Surface
  • False Clamp Plate
  • Cast Iron and Steel Construction
  •





TC Control System Features:

  • 10.5" Color Touch Screen control panel
  • Electronic Clamp Pressure control
  • USB port for simple thumb drive program entry
  • Ability to receive .csv files making offline programming and memory storage simple
  • Repeat and Loop commands streamline program entry
  • Auto-programming features of sheet division and label cutting with animated graphics
  • Programmable Clamp pressure per cut
  • Automatic Fraction to Decimal Conversion
  • Unlimited program storage capacity
  • Program Lockout
  • Computer Diagnostic Tools
  • ANSI safety standard compliant and CE, UL and cUL Listed

Specifications

Specifications

Maximum Cutting Width: 37" / 94cm
Minimum Cut: without false clamp plate 3/4" / 19mm
                          with false clamp plate 2-5/8" / 6.7cm
Maximum Cut Depth: 40"/ 102cm
Clamp Opening: without false clamp plate 5-1/8" / 13cm
                             with false clamp plate 4-7/8" / 12.4cm
Clamping Method Hydraulic and Manual
Maximum Clamping Force 7000 lbs / 3100 daN
Backgauge Control Power



DIMENSIONS
Table Space:  in front of knife 25" / 63.5cm
                         behind knife 40" / 102cm
Table Height 36" / 92cm
Overall Height 60" / 153cm
Overall Width (with side tables) 109" / 277cm
Overall Width (without side tables) 63-1/2" / 162cm
Overall Length 86-1/4" / 219cm
Mounting Dimension 36" / 91.4cm
Door Pass-through: assembled 63-1/2" / 162cm
        with table/treadle removed 35" / 89cm
Net Weight (approximate) 3750 lbs / 1701 kg
Shipping Weight (approximate) 4200 lbs / 1905 kg

ELECTRICAL

  • 10 H.P. Three Phase, 60 Hz, AC
  • 208 Volts, 38 Amps (service size 60 Amps) or
  • 230 Volts, 33 Amps (service size 60 Amps)
  • 460 Volts, 20 Amps (service size 40 Amps)
  • U.L. Listed
