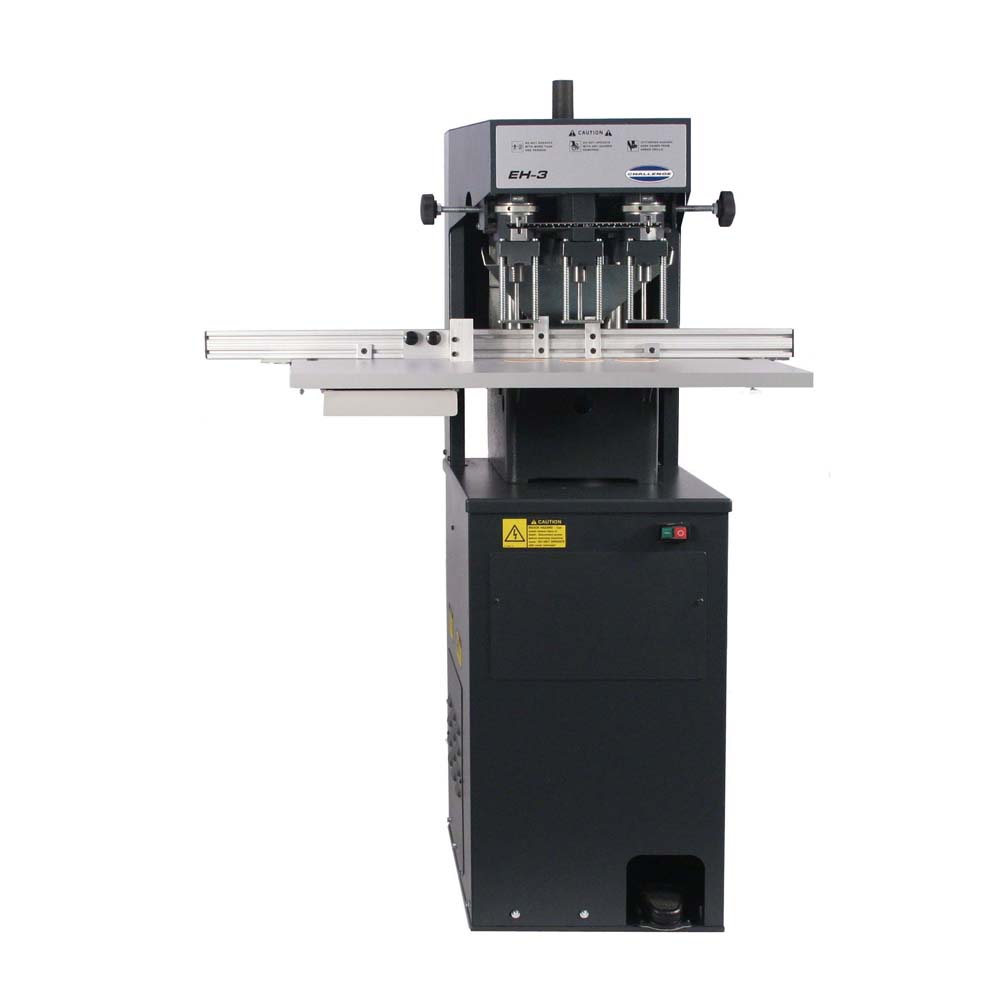

Challenge 3-Head Hydraulic Paper Drill

GM-CMC-EH_3C

Ea. (1)


Powerful 3-Head Hydraulic Operation drill with fast and easy adjustments.

- 2-1/2" Drilling Capacity
- Fast and Easy Head Adjustments
- Automatic Drill Return
- Auto-Trip Side Guide (optional)
POA

Specifications

Specifications

Number of Drill Heads 3
Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm
Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm
Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm
Maximum Drilling Capacity 2-1/2" / 63 mm
Strokes per Minute (adjustable) Up to 18
Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm
Vertical Adjustment of Individual Heads 1/4" / 6 mm
DIMENSIONS
Table Size 19-1/2" x 31-1/2" / 50 x 80 cm
Table Height 37" / 94 cm
Overall Height 59-1/4" / 151 cm
Floor Space Needed 36" x 41-1/2" / 91 x 105 cm
Net Weight (approximate) 520 lbs / 236 kg
Shipping Weight (approximate) 570 lbs / 259 kg
ELECTRICAL
1 Phase, 60 Hz, AC.  Pump: 1/2 HP.   Spindle Motor: 1 HP.
208 Volts, 18 Amps (service size 30 Amps) or
230 Volts, 17 Amps (service size 30 Amps)
UL Listed
