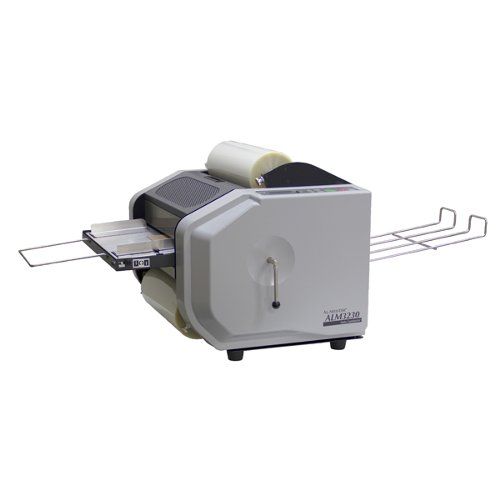

Automatic 14" Laminator

GM-DRY-ALM3230

Ea. (1)

Eliminate time-consuming, costly hand feeding and trimming in laminating with the new value priced ALM3230 lamination system!

• Small Foot Print – less than 4 sq. ft.
• 115 Volt, 15 amp service
• Ultra quick warm up < 5 minutes
• Sheets sizes: 13”x19”, 12”x18”, 11”x17”, 8.5”x11”
• Laminates copy paper up to 100lb

Interested in this product?
POA

Description

Description

Applicable Sizes
A3
·  With margin：303×426mm（±0.5mm）
·  Without margin：294×417mm（±0.5mm）

A4
·  With margin：303×216mm（±0.5mm）
·  Without margin：294×207mm（±0.5mm）

B4
·  With margin：263×370mm（±0.5mm）
·  Without margin：254×361mm（±0.5mm）

B5
·  With margin：263×188mm（±0.5mm）
·  Without margin：254×179mm（±0.5mm）

Accessories
Feeder Tray Extension Tray Rear Stacker Tray Power Cord Instruction manual Waste Box

Specifications

Specifications


Laminating Speed  1.0m/min
Warm-Up Time  Approx.15min
Temperature Range  OFF·80-130 ˚C
Film Thicknesses  38~100 micron
Feed Tray Capacity  Approx.200sheets
Max. Laminating Thickness  0.4mm(including film thickness)
Paper Thickness  65~240g/m2
Paper Size    Maximum：330(W)×457(L)mm
   Minimum：257(W)×182(L)mm
Power  AC 110V, 120V, 220-240V / 1200W
Dimensions        1272(W)×630(D)×470(H)mm
Weight    44kg
