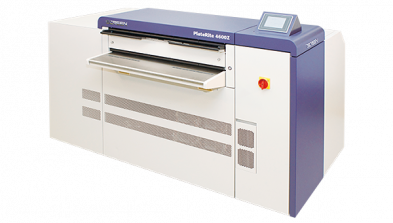

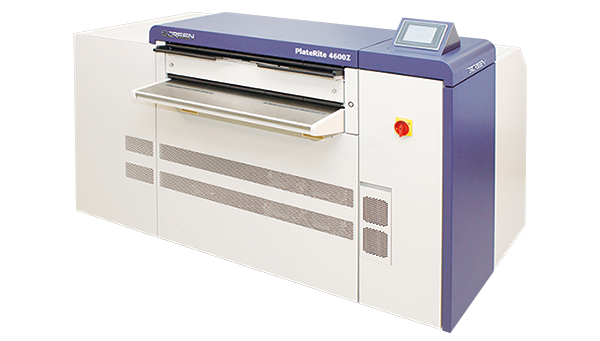

Screen PlateRite 4600S Plate Maker

PM-SCR-PR4600S

Ea. (1)


SCREEN’s advanced 4-page thermal CtP systems. PlateRite 4600 series CtP systems enable consistent production of high-quality printing plates. The exposure heads have been enhanced with the addition of new fiber laser diodes which enable the reproduction of sharper halftone dots, significantly improving print quality.

• Autoloader maximizes productivity
• Wider range of supported plate sizes
• Accurate reproduction of halftone dots w/proprietary exposure heads
POA

Description

Description

Accurate reproduction of halftone dots with proprietary developed exposure headsTo ensure more stable exposure, the light source is equipped with the same proven fiber laser diodes used in the PlateRite 8600 series. The resulting changes in the laser beam have improved the balance of vertical and horizontal lines, enabling sharper reproduction of halftone dots. This has led to a major increase in overall print quality.

Autoloader maximizes productivityAn autoloader system can be installed to automate all processes from plate loading through exposure, transport and developing to discharge. The autoloader supports extended periods of continuous operation and significantly increases both productivity and press operating ratios.

Wider range of supported plate sizesImproved support for small size plates (optional).  The newly available small size option supports minimum plate size of 270 × 278 mm (10.7" × 11"). This option provides increased flexibility when using letterpress systems.

Specifications

Specifications

Plate size, max: 32.6 x 25.9" (830 x 660mm)
Plate size, min: 10.7 x 11" (270 x 278mm)
Exposure size, max: 32.6 x 25.3" (830 x 644mm)
Plate: Thermal aluminum plate
Plate thickness: 5.9 to 11.8 mil (0.15 to .3mm)
Resolutions: 1,200 / 2,400 / 2,438 / 2,540 dpi
Repeatability: +/- 5 microns
Productivity: 21 plates / hr
Imaging source: 32-channel laser diode
Imaging system: External drum
Electrical: AC 200-240V, 1PH, (20A service)
Machine Dimensions (Wx Dx H): 78.2 x 51.8 x 51.2" x 1,826 lbs.
