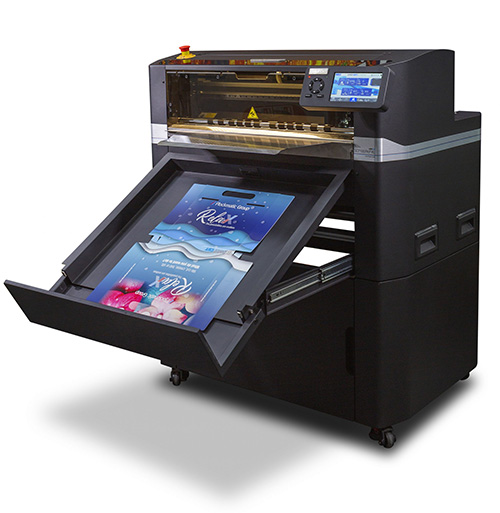

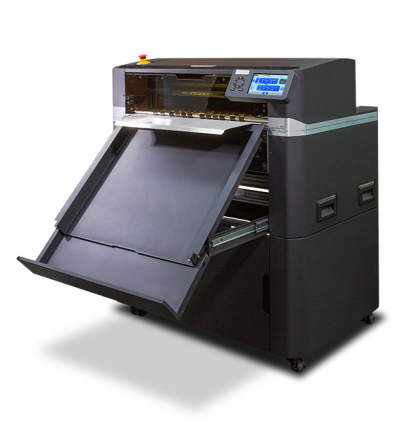

The ColorCut SC7800 Pro-RS XL is a premium, fully-automatic dual-tool cutter and creaser designed to deliver the "ultimate digital crease" for high-end packaging and point-of-sale materials. This unique system is a hybrid of flatbed, sheet-fed, tangential, and contour cutting technologies, engineered to handle large-format media up to 520 x 740mm. By utilizing a completely digital process, it allows businesses to produce complex shapes and designs directly from printed artwork, eliminating the costs and lead times associated with traditional physical dies.
At the heart of the SC7800 Pro-RS XL is a revolutionary triple tool head that features a passive contour/drag-cut tool alongside dual-opposing active tangential creasing wheels. This "male/female" creasing technology applies force from both above and below the media simultaneously, creating a traditional, highly defined crease that is smoother and more precise on thick cardstock up to 450 microns. The system is further enhanced by a Quad (4) ‘Grip and Drive’ feed system, which securely holds media on both sides of the cutting head to enable cutting closer to the edges.
For high-volume, unattended production, the machine includes an auto-feeder that stacks up to 900 sheets and uses an advanced vacuum belt with dual automatic air blades to ensure faultless feeding of even tricky laminated stocks. Its 9th generation Vision3 CCD camera instantly retrieves cut files via QR codes, supporting a "HELD" mode that allows for standalone operation from a USB drive without a dedicated PC. All operations are managed through a 7-inch immersive touch screen that provides live visual feedback and total control over the automated workflow.
Features
Dual-Opposing Tangential Technology: Features a patent-pending system with male and female creasing wheels that "form" a crease from both sides of the media for a professional, crack-free finish.Intelligent
Standalone Automation: Utilizes AI-based ColorCut Pro software and QR code retrieval to process mixed job batches automatically, even if sheets are rotated 180 degrees.
High-Speed Versatile Cutting: Capable of digitally cutting through any shape at speeds up to 1060mm/sec on a wide variety of media, including FBB, card, and synthetics.Advanced Media Handling: Employs a vacuum feed belt with "jog" functionality and "SmartTags" to keep finished items neatly retained in the sheet for a tidy delivery stack.
