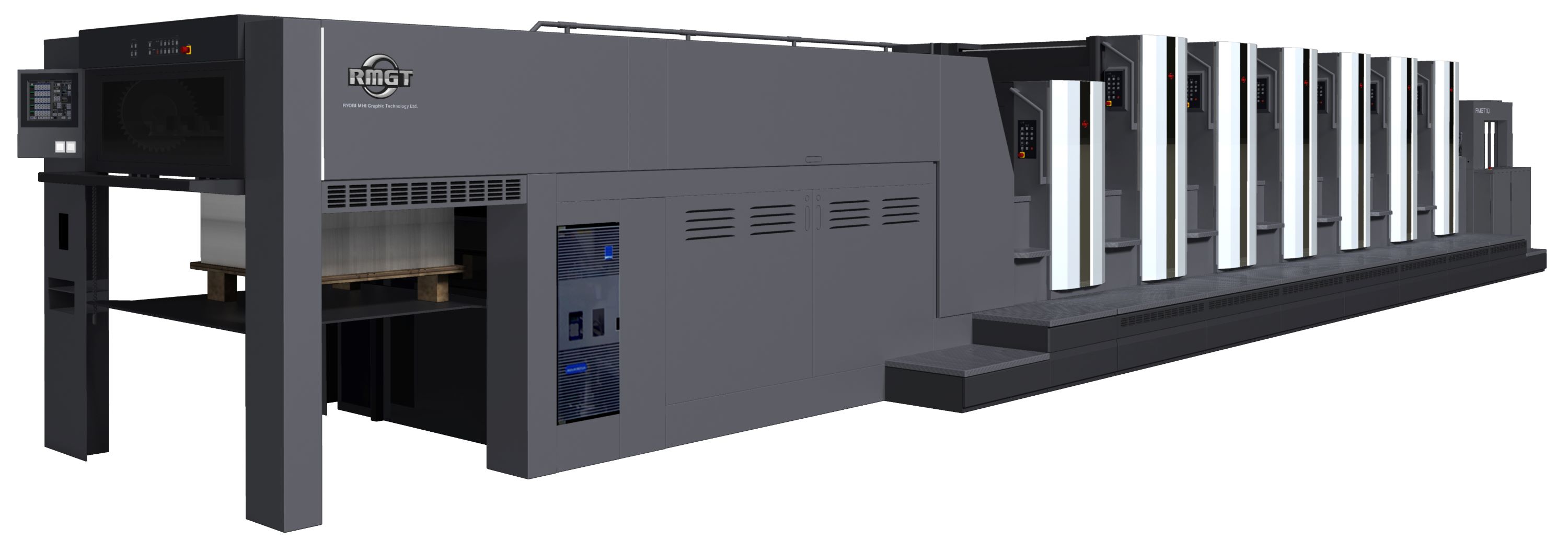

RMGT 10 Series - 1050LX


Ea. (1)

The RMGT 10 Series is a high-throughput, full-size machine able to produce high-quality commercial products, as well as color-dominant short-run jobs with fast make-readies and consistent repeatability.

• Max. Paper Size: 29.53″ x 41.34″
• Max. Paper Thickness: 0.002″ - 0.031″
• Max. Printing Speed: 16,200 sph
Interested in this product?



The RMGT 10 LX (wide stock range press) features a sheet transfer system that employs unique air management technology and a skeleton transfer cylinder that keeps the surface of the printed sheets from coming into contact with the cylinder. This prevents scratching and smearing, ensuring high printing quality. The lineup also includes models with coating units and curing units to handle high-grade high-gloss printing work.  The RMGT 10 Series proudly boast the lowest overall cost of ownership for all large format packaging presses on the market today, yet still maintains the ability to run light weight label stocks.

Four Available Configurations include the LS, LX, TP (Tandem Perfector) and PF (Convertible Perfector) Models

Key Advantages

  • Skeleton transfer cylinder keeps surface of printed sheets from coming into contact with cylinder
  • Air chamber below transfer cylinder ensures stable sheet transfer for a wide range of sheet thicknesses
  • Gripper height adjustment device adjusts the gripper pad height on the transfer cylinder according to the sheet thickness
  • Remote controlled ink oscillating rollers dead point positioning (ink light and shade position remote control) and other ink adjustment devices specially for printing on heavy stock (optional)
  • Automatic non-stop feeder and delivery shutter boosts productivity for continuous printing on heavy stock (option)
  • Delta-type dampening system eliminates the need for hickey removal when printing on heavy stock (option)
  • Chamber coater system maintains a consistent coating thickness regardless of printing speed (option)
  • Parallel processing of printing procedure shortens make-ready time approximately 20-40% compared to previous presses.



Specifications (1050 LX)

  • Maximum Printing Speed: 16,200 SPH
  • Maximum Paper Size: 29.53” x 41.34” (750 x 1050mm)
  • Minimum Paper Size:  14.17” x 21.26” (360 x 540mm)
  • Maximum image Area: 29.13” x 41.34” (740 x 1050mm)
  • Paper Thickness Range: .04 – 1.0mm  (.0016 x .039”)
