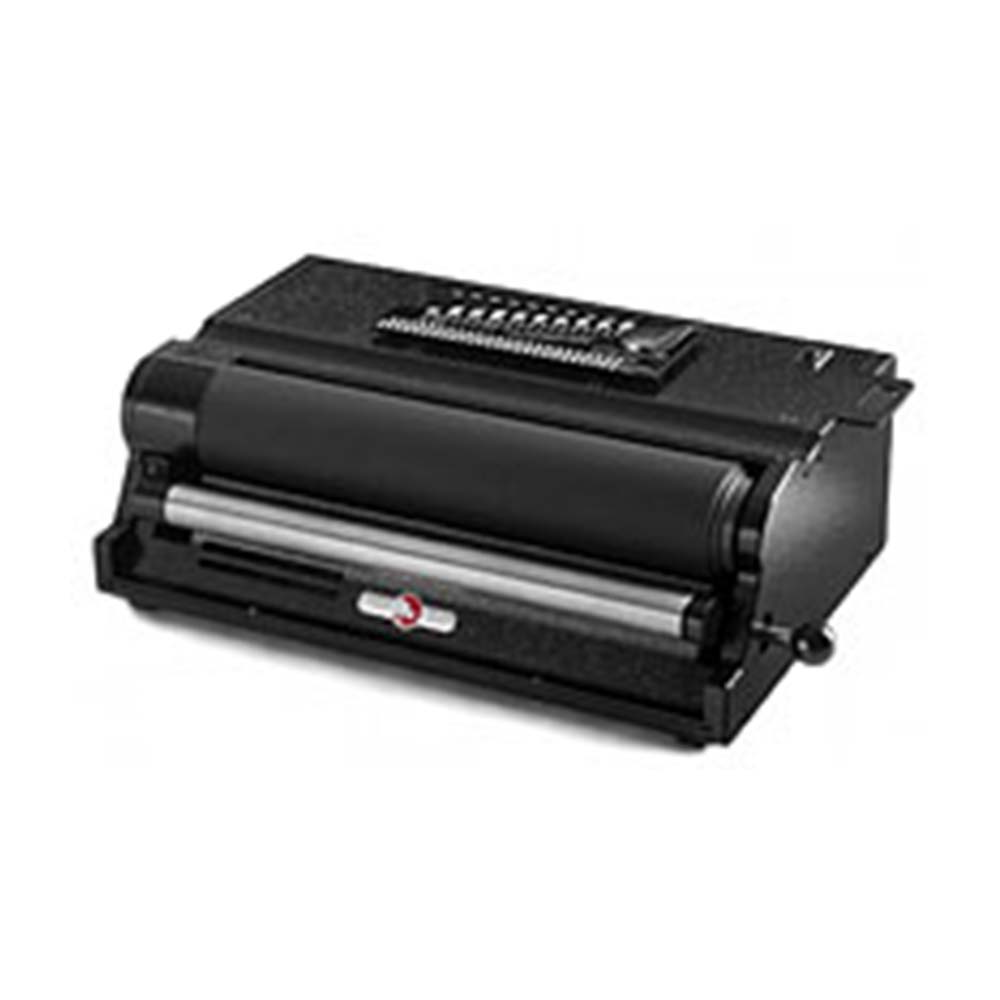

Rhin-O-Tuff ONYX HD4170 Electric “Rhin-O-Roll” Coil Inserter

The HD4170 "Rhin-O-Roll" Coil Inserter Module has 12-inch dual powered rollers with an adjustable lower roller for high performance and easier more accurate coil insertion. It has gauges to measure document thickness and coil sizing.

An essential piece of binder equipment, the HD4170 coil binding system can be used as a stand-alone production coil inserter or it can be attached to any vertical OD or HD Series binder equipment (optional mounting kit available).

Designed for fast coil insertion for all pitches and diameters. All HD4170 comb, wire and spiral coil binding systems come with crimper pliers and a built-in holder.

• Light-to-medium production
• 12 inch (305mm) Dual Powered Rollers, lower roller adjusts for easier more accurate coil insertion.
• Book thickness gauge
• Coil sizing gauge
• •Fits on all vertical OD and HD Series Machines (optional mounting kit available)
• Can be used as a stand-alone Production Coil Inserter
• Crimping pliers and crimping pliers holder
• Inserts All Pitches and Diameters
• Superior rubber formula grabs coil better
• Designed and manufactured in the USA
• Perfect for office, digital, or commercial production

Roller Size

12" (305mm)

Weight

35 lbs

Volts

115ac (60hz)

Compatible Supplies

Plastic Spiral Binding Coils

Machine Dimensions

5" x 17 1/2" x 10" (H x W x D)

Actual Machine Dimensions

6 x 17 x 11

Actual Machine Weight

24

Shipping Length

25

Shipping Width

16

Shipping Height

11

Shipping (Web) Weight

35 lbs

Manufacturer's Warranty

Three Year Manufacturer Manufacturer's Warranty
