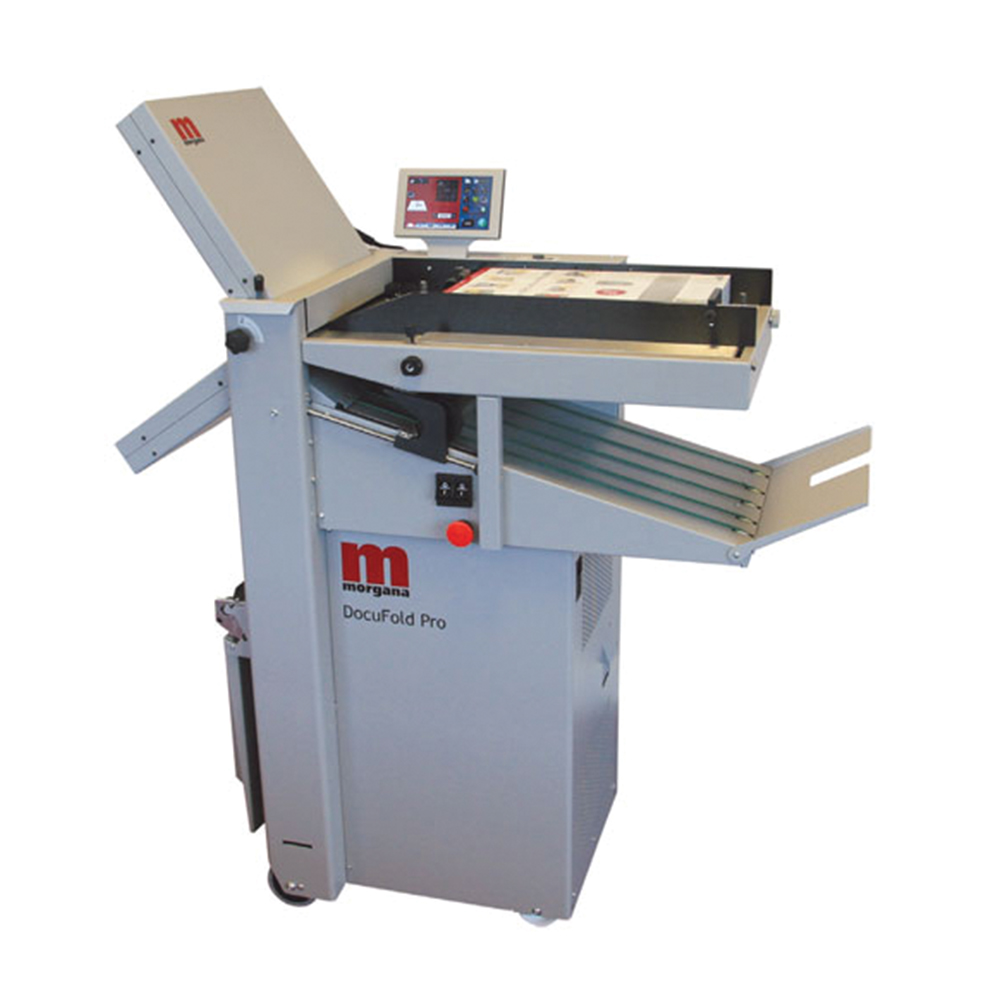

Morgana DocuFold Pro Folder

GM-MSY-DOCUFOLDPRO

Ea. (1)

The Morgana DocuFold Pro is a fully automatic paper folding machine, ideal for folding litho or digital stock.

• Powerful suction feeder
• 7″ SmartScreen
• Side lay alignment of the sheets
• Low pressure suction chamber
• Fully enclosed fold plates
• Fitted with anti-static brushes
POA

Description

Description

The Morgana DocuFold Pro is a brand new concept fully automatic paper folding machine. Equipped with the latest SmartScreen technology, it enables an operator with minimum training to carry out a variety of  folds from an icon driven touch screen.  Includes perf and score module for easy set up of perforating and scoring.

Key to the Morgana DocuFold Pro design criteria was a machine with a high degree of automation. Operation is therefore simplicity itself. Enter the sheet size and fold type on the DocuFold Pro SmartScreen and the machine automatically adjusts the fold plates and delivery rollers electronically.

The fold rollers will also compensate for most types of fold or paper weight without the need for adjustment, further enhancing the ease of use. Built-in anti-static brushes assist in the discharge of statically charged print material, one of the most troublesome problems faced by document finishers today.

To control curled paper, another potential difficulty, the pressure suction chamber which is built into the feed table, gently pulls down each sheet as it is being fed into the fold rollers.



• Powerful suction feeder
• 7″ SmartScreen
• Side lay alignment of the sheets, prior to folding
• Low pressure suction chamber to control curled paper before it enters the fold rollers
• Fully enclosed fold plates. Fitted with anti-static brushes
• Plug in perforating and scoring attachment
• Variable speed up to 27,500 sph
• Catch tray to collect work for perforating or scoring
• Driven delivery belt stacker
• Counting & batching
• Double sheet, and jam detector

Specifications

Specifications

Maximum sheet size: 26.5" x 14.3"

Minimum sheet size: 6.2" x 5.5" (3.7" with optional narrow sheet attachment)

Maximum paper weight: 90lb cover (varies according to material and grain direction)

Minimum paper weight: 16lb bond

Load capacity: 500 sheets 22lb bond

Maximum number programmes: Unlimited alpha numeric

Speed per hour (8.5" x 11"): 27,000 (stream feed)

Dimensions: L 48.8" x W 21.8" x H 53.9"

Weight: 260 lb

Power requirement: 240v 50/60hz

Options: Electric rear delivery, Cross-fold, Narrow sheet guide
