Stay Ahead. Print Everything.

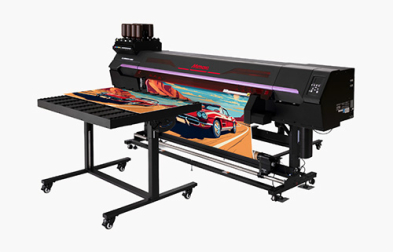

The Mimaki UJ330H 160 isn't just the next step in wide format printing — it's a leap forward. Built for shops that refuse to be limited, this hybrid powerhouse handles roll media and rigid substrates with equal confidence, so you spend less time turning down jobs and more time growing your business.

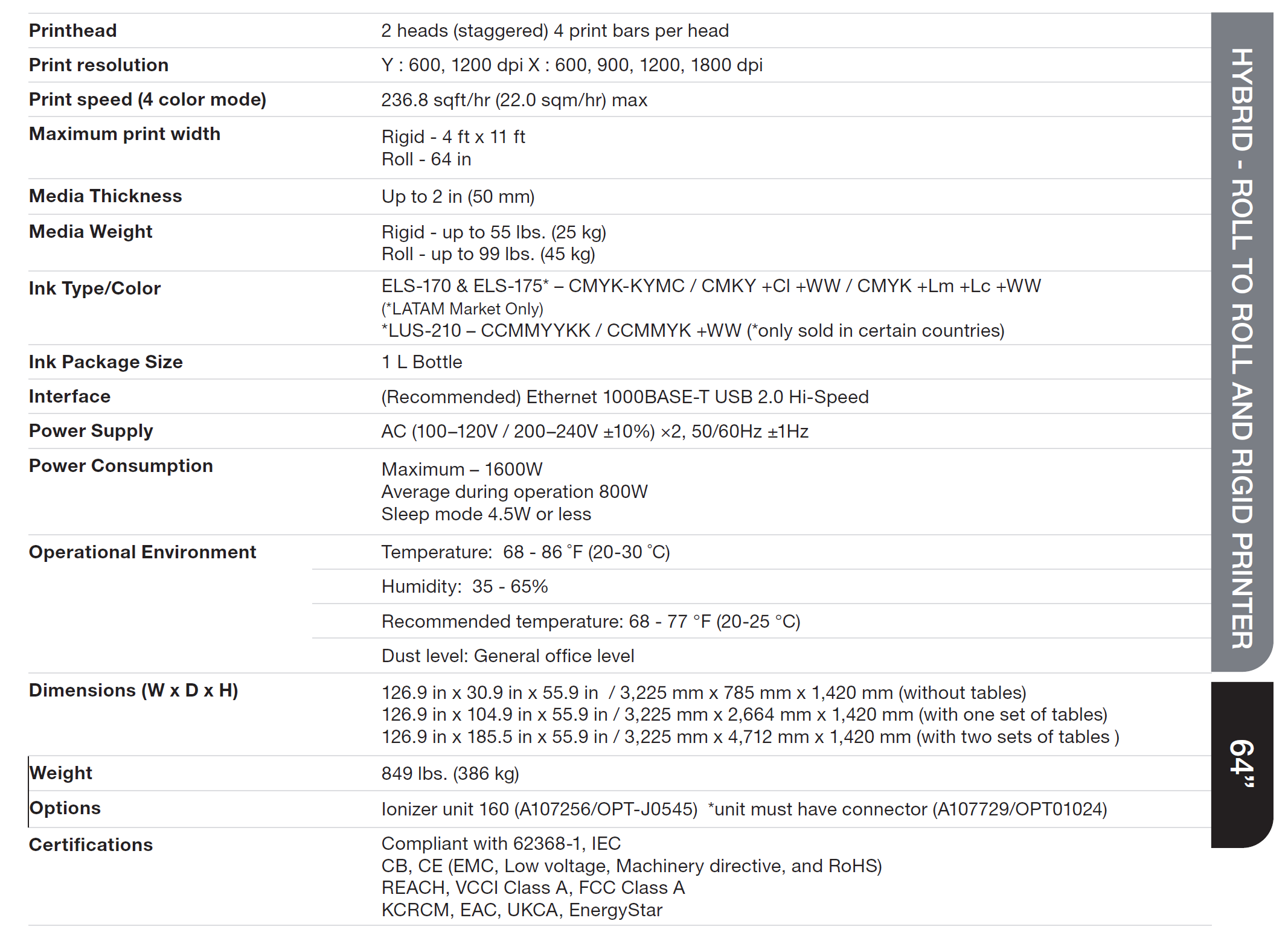

At its core is Mimaki's trusted 330 Series print engine, pairing dual printheads with a 6-color configuration that adapts to your workflow. Choose from CMYK x2, CMYK + Clear + White, or CMYK + Light Cyan + Light Magenta + White — the flexibility is yours. With resolutions up to 1200 × 1800 dpi and a full suite of Mimaki intelligence — NCU, NRS, DAS2, VDT, MWDT, MAPS4, and Mimaki PICT — every print is precise, consistent, and smarter than ever. Monitor ink levels, production status, and performance from your phone, wherever you are.
A 2-inch head clearance and an innovative vacuum belt transport system replace traditional pinch rollers entirely, eliminating marks and handling even the most delicate media with ease. From ultra-thin films to 2-inch thick rigid board, the UJ330H 160 takes it all in stride.
Why the UJ330H 160?

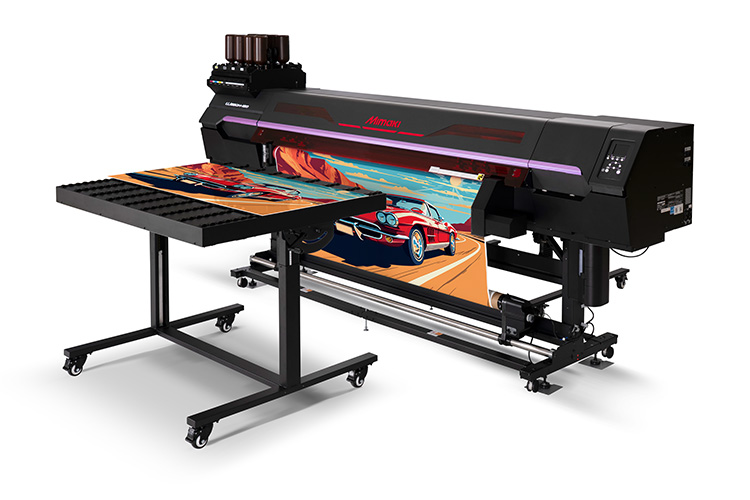

- One Machine. Two Worlds. Switch between roll-to-roll and rigid flatbed applications in minutes — producing window graphics, vehicle wraps, and 4×11-foot aluminum composite signs on a single footprint, with no compromise.
- A Belt System That Raises the Bar. The newly engineered conveyor belt transport delivers stable, wrinkle-free media handling for thin films and delicate fabrics — the kind of consistent performance that conventional pinch roller systems simply can't match.

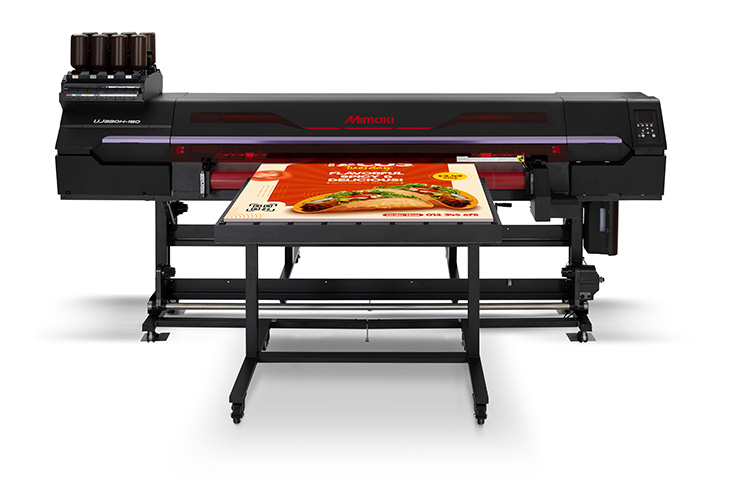

- Built for the Heavy Stuff. Auto-vacuum and front/rear lock rollers keep large, heavy substrates firmly in place. Standard signboard materials, aluminum composite plates, and boards up to 2 inches thick are all well within its range.
- Print That Commands a Premium. With support for up to five-layer printing, 2.5D textured embossing, and gloss or matte clear ink finishes, the UJ330H 160 lets you offer high-margin specialty products that set your shop apart.
- Speed Without Sacrifice. Delivering up to 22.0 sqm/hr, the 330 Series engine produces stunning, high-definition graphics with smooth gradients — the kind of output that stops people in their tracks.
- Two Machines in One Budget. Combining flatbed and roll-to-roll capability in a single unit means lower capital investment and a smaller footprint — freeing up floor space and cash for what matters most.
- Consistent Quality, No Expert Required. Intelligent auto-adjustment functions maintain optimal print conditions automatically, reducing the need for specialized operator training and virtually eliminating human error.
- Clean Ink. Clear Conscience. UV inks free of SVHC and CMR substances protect your operators and keep you compliant with global environmental standards — because responsible printing is good business.
- LamiFit: The End of Silvering. Mimaki's proprietary LamiFit technology fills blank areas with clear ink to level the media surface, eliminating the trapped air bubbles that cause silvering during lamination. A clean finish, every time.
- Surprisingly Lean on Power. At just 1.6kW maximum power draw, the UJ330H 160 is dramatically more efficient than Latex (5kW) or Eco-Solvent (2.9kW) alternatives — cutting energy costs without cutting corners.
