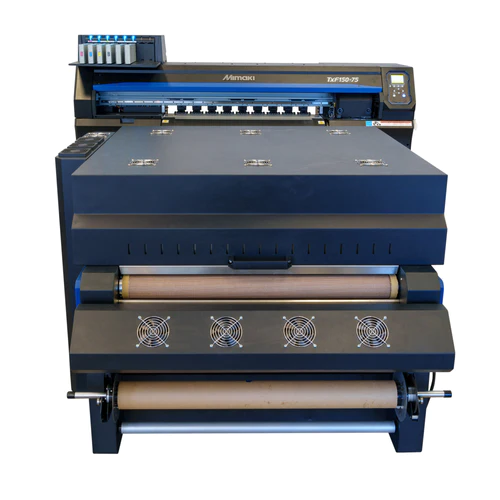

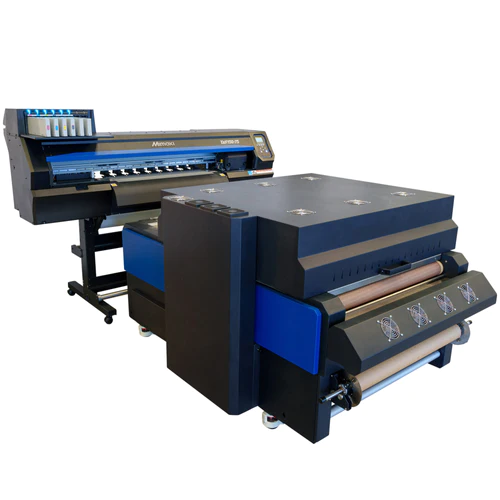

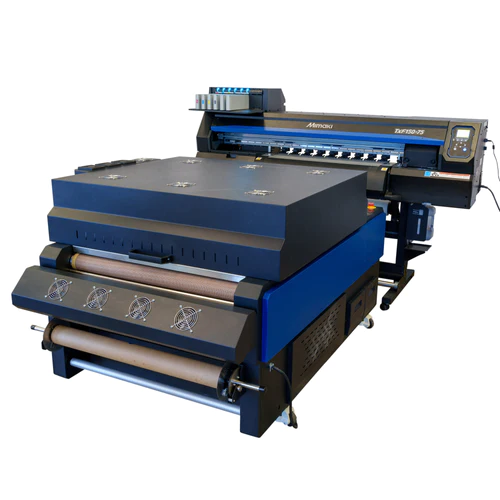

Mimaki TxF150-75 DTF Printer w/32" Shaker Dryer

PM-MIM-TXF150_75_PKG

Ea. (1)
TxF150-75 is a reliable, high-quality printer that incorporates Mimaki's technologies based on the concept of safety and stability. The DTF printer is designed with a focus on stable quality, incorporating functions to prevent ink ejection failure and white ink clogging, which have been major issues for DTF printers.

• Mimaki Circulation Technology (MCTv2)
• Degassed aluminum ink pack prevents nozzle clogging
• Nozzle check unit (NCU) & Nozzle Recovery System (NRS)
POA

Description

Description

TxF150-75 is a reliable, high-quality printer that incorporates Mimaki's technologies based on the concept of safety and stability. The DTF printer is designed with a focus on stable quality, incorporating functions to prevent ink ejection failure and white ink clogging, which have been major issues for DTF printers.

  • Equipped with the newest version of Mimaki Circulation Technology (MCTv2) that prevents white ink sedimentation by constantly circulating the ink
  • Degassed aluminum ink pack prevents nozzle clogging by reducing oxygen and other gases from mixing with the ink
  • Nozzle check unit (NCU) & Nozzle Recovery System (NRS) checks for clogged nozzles and automatically performs nozzle cleaning and replacement without interrupting printing.
  • New pinch roller system for stable media feeding of DTF film
  • 3-way intelligent heater for blur-free image quality

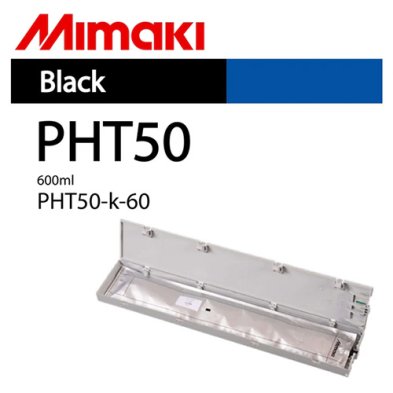

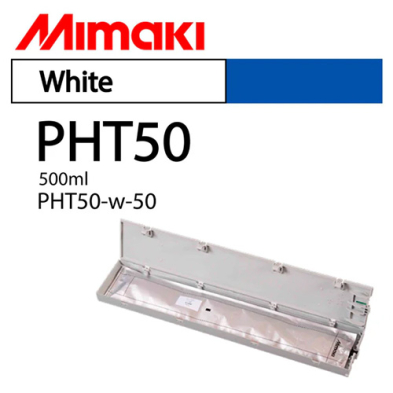

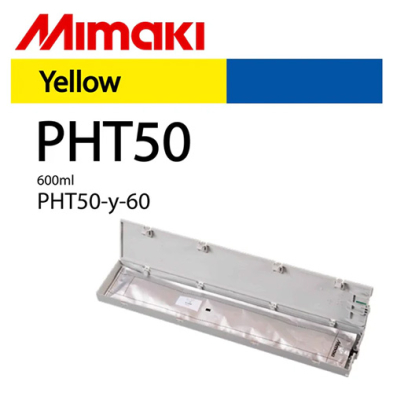

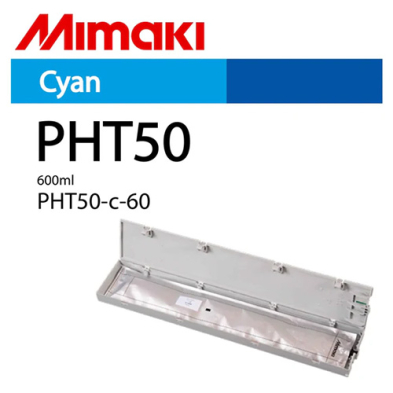

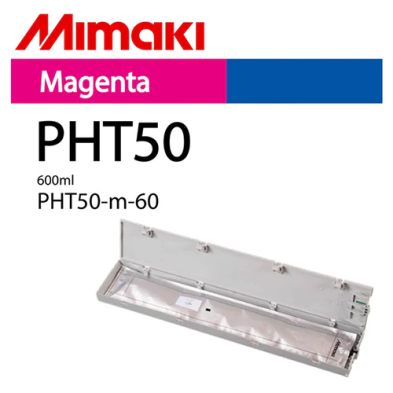

  • Thermal transfer pigment ink PHT50 is ECO PASSPORT certified ink

Specifications

Specifications

Printhead

On-demand piezo head

Print Resolutions

720dpi, 1,440dpi

Print Speed (4 Color)

up to 35.5² ft/hr (3.3m²/hr)

Maximum Print Width

31.5" (800mm)

Maximum Media Width

28.7″ (730 mm)

Maximum Media Thickness

Up to 0.04" (1mm)

Maximum Media Weight

Up to 99.2 lbs. (45.0 kg)

Ink Type

Heat transfer pigment ink PHT50 (C,M,Y,K,W)

Interface

Ethernet 1000BASE-T / USB2.0

Power Supply

Main unit: Single phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power Consumption

100V system: 1.44kW, 200V system: 1.92kW

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

77.4″ x 27.6″ x 54.8″ (1,965mm x 700mm x 1,392mm)

Weight

277.8 lbs. (126 kg)

Certifications

VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
