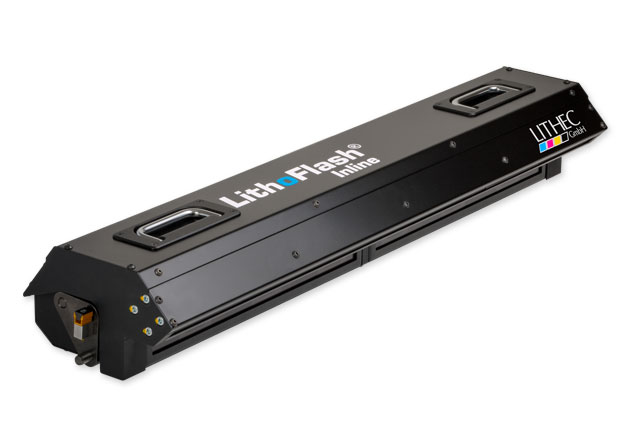

Lithec Litho Flash - In Press Camera System

GM-LIT-LITHOFLASH

Ea. (1)

Inline measurement and control system for offset printing

• LithoDyn dynamic control minimizes waste
• Minimal energy costs due to flashing LED
• Clearly structured user-friendly interface
• Definable print control strips
• Long service life and low operating costs
POA

Description

Description

Reduced setting time increases job throughput. High waste savings directly lower substrate costs. Moreover, the use of a measurement and control system additionally ensures production quality.

Application areas

• For sheet-fed and web offset printing machines with a production width of 52-205 cm
• Measurement and control of the densities of process inks and special colors
• Monitoring of tone value increase, print contrast and trapping parameters

Customer Benefits

• High savings thanks to LithoDyn dynamic control
• Minimal energy costs due to flashing LED
• Clearly structured user-friendly interface
• Definable print control strips
• Effective protection against contamination thanks to innovative glass/visor system
• Long service life and low operating costs
• Can be adapted to various printing machines

Measurement methods and sensors
• Wear-free sensor system with integrated dust and dirt protection
• Density measurement similar to ISO
• Parallel measurement of all density channels over the entire printing width
• Measurement of each sheet
• 0/45° optics
• Maintenance-free and long-life LED measuring light
• Polarising filter
• Measuring range 0.0 – 2.2 D
• Using existing print control strips is possible
• Selectable height, width and configuration of measurement fields (min. Size 3x4mm)
• Strip library for optional use of various print control strips
• Reproducibility: 0.01 D depending on the measurementcondition
• Line feed up to 15 m/s

Options for the LithoFlash® System
• LithoFlash CIP (software module for ink presetting)
• LithoColor (colour database)
• LithoRef (manual measuring device)
• LithoFlash® sheet guiding (all formats)
