Horizon SPF-200L Automated Stitcher/Folder

GM-HOR-SPF200L

Ea. (1)

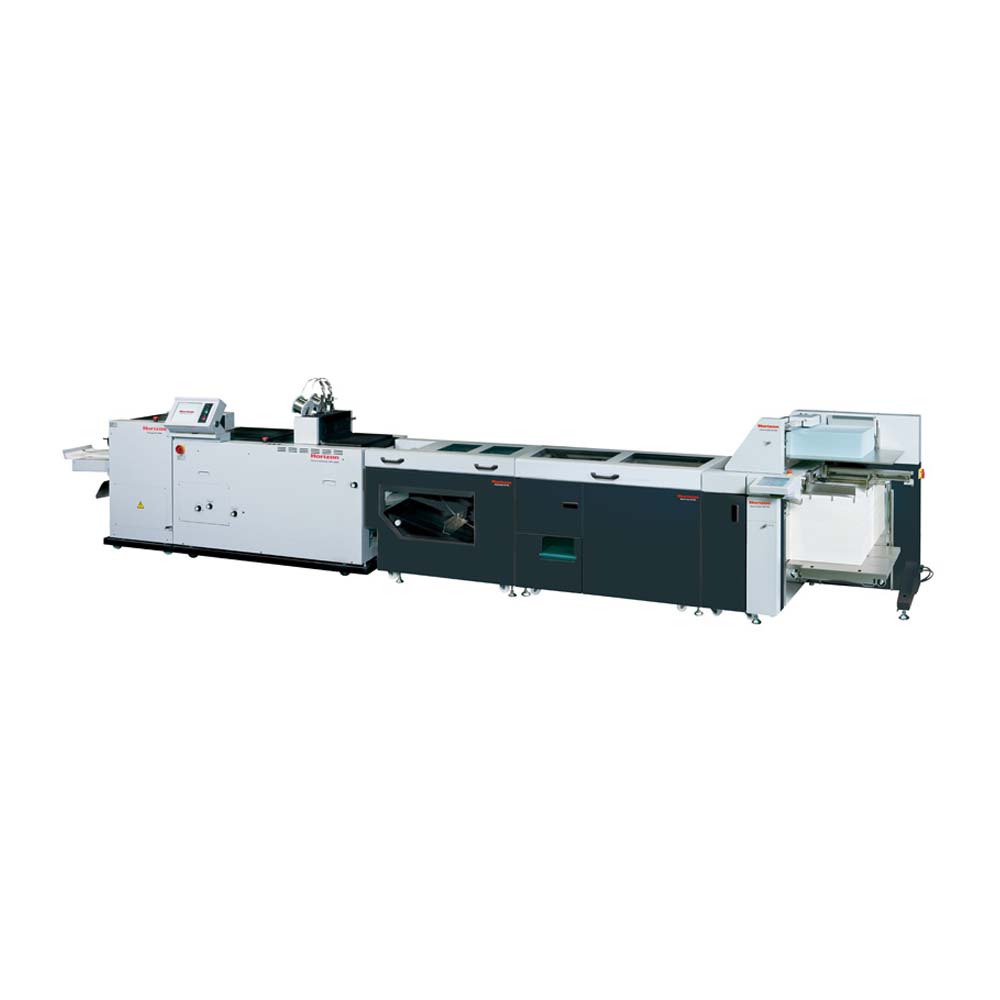

The Horizon SPF/FC-200L with HOF 400 is a fully automated landscape combination stitcher/folder and face trimmer.

  • Equipped with a user-friendly 10.4” color touch screen
  • Advanced set-up automation and centralized control

POA

Description

Description

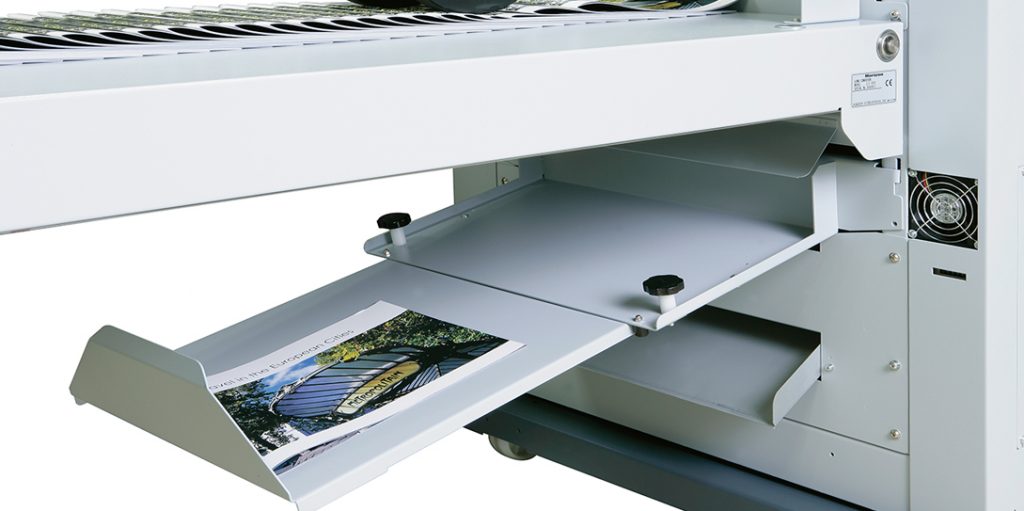

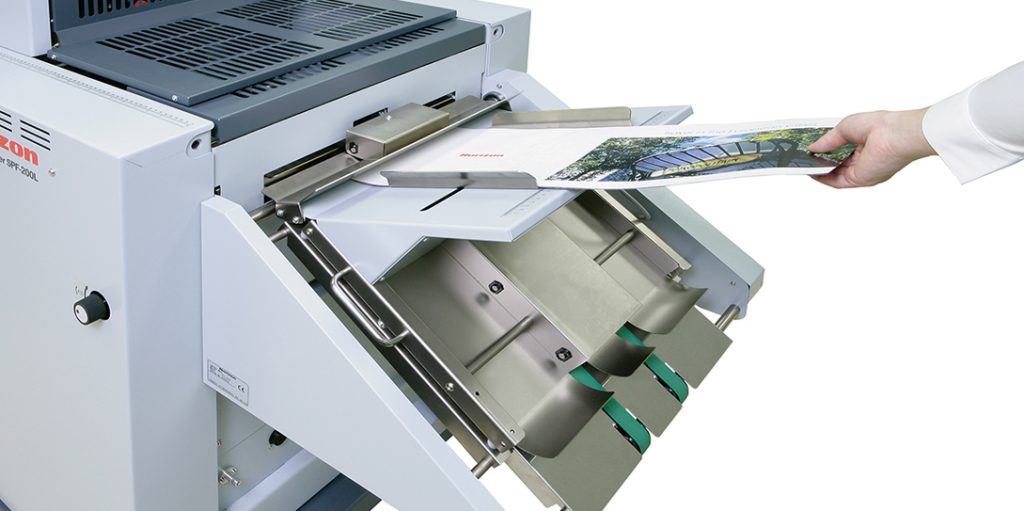

The Horizon SPF/FC-200L with HOF 400 is a fully automated landscape combination stitcher/folder and face trimmer. It is equipped with a user-friendly 10.4” intelligent color touch screen that provides advanced set-up automation and centralized control. The SPF/FC-200L features an integrated hand-marry station for increased flexibility and a built-in error eject tray which allows for non-stop production at speeds up to 4,500 booklets/hour. The HOF-400 is the latest in Horizon’s line of versatile sheet feeders. Variable page count production can be handled with integrity and verification using the standard mark reader.

  • Landscape format support: The SPF-200L also features improved format flexibility including 8.5” x 11” landscape capabilities, ideal for producing landscape brochures or calendars.
  • Easy to operate: Fully-automated set-up through the 10.4 inch color touch screen – including fold roller gap adjustment – ensures user-friendly and intuitive operation for professional quality booklet production at all skill levels.
  • Digital and offset support: The system can accept digitally printed output from any of Standard’s HOF high-speed sheet feeders and can also serve conventional offset print needs when combined with a collating tower.

Specifications

Specifications

Max. sheet size: 14" x 24"
Min. sheet size: 4.7" x 7.1"
Max. paper thickness: 157 gsm
Min. paper thickness: 64 gsm
Max. Booklet size: 14" x 12"
Min. Booklet size: 4.7" x 3.5"
Speed: up to 4,500 booklets/ph
Display: 10.4" Color touch screen
Memory: 200 programmable jobs
Electrical: 220-240v, 1ph, 50/60hz
Machine Dimensions (LxWxH): 73.1 x 31.9 x 49.3" x 1,083.8 lbs.
