GW Automatic Creaser Folding System

GM-GWH-PT335AFK

Ea. (1)

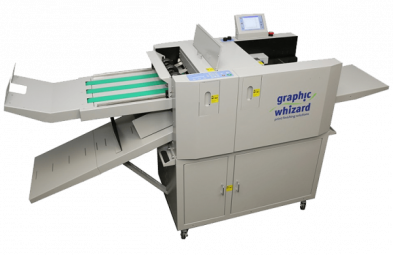

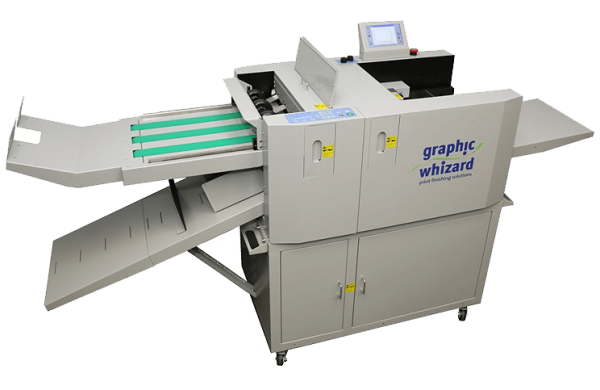

The GW PT335 AKF folds, creases up/down and cross perfs all in one machine. It features a 4" vacuum pile feeder, auto sheet measurement, a 6" color touchscreen and has 6 different interchangeable creasing/perfing dies.

• Speed: 6,500 sheets/hr
• Folds paper from 150 to 350 gsm
• Crease or perf up to 35" long sheets into one bypass
• Self-adjusting automated smart delivery

POA

Description

Description

The GW PT335 AKF folds, creases up/down and cross perfs all in one machine. It features a 4" vacuum pile feeder, auto sheet measurement, a 6" color touchscreen and has 6 different interchangeable creasing/perfing dies.

• Speed: 6,500 sheets/hr
• Folds paper from 150 to 350 gsm
• Crease or perf up to 35" long sheets into one bypass
• Self-adjusting automated smart delivery
• Automated job set up with sheet length measuring
• Interchangeable dies for perforating with partial perf capabilities
• Interchangeable crease dies to compensate for stock thickness
• 3 year warranty

Specifications

Specifications

Electrical 110-130v, 50/60hZ, 15a
Speed 6,500 sheets/set per hour
11″ x 8.5″ half fold
Maximum Sheet Size 13″ wide x 35″ long
(33.02cm x 88.90cm)
Minimum Sheet Size 5.5″ wide x 6″ long
(13.97cm x 15.24cm)
Stock Weight 150-350 gsm
Tabletop/Floor Floor
Max Number of Creasing Positions 32
Program Memory 64
Feeder 4” vacuum pile feed

NOTE: Machine performance will vary based on stock weight, type, and specifications of the job being performed.
