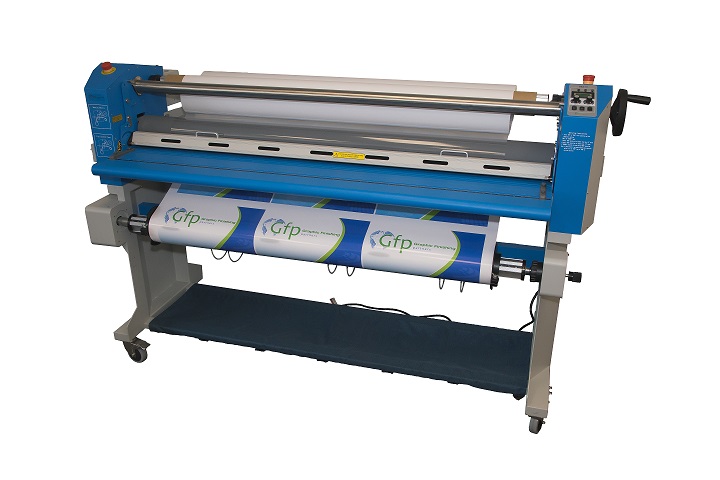

GFP 563TH-4RS Top Heat Laminator w/Swing Out Shafts

GM-GFP-563TH_4RS

Ea. (1)


What's the best way to make your production even better? Shorten film loading time? Make fewer film changes? Increase throughput speed? The 563TH-RS does all that and more.

• Swing-out quick-grip supply shafts
• Drop-in quick-grip rewind shafts
• Photoelectric eye for safety
Interested in this product?
POA

Description

Description

What's the best way to make your production even better? Shorten film loading time? Make fewer film changes? Increase throughput speed? The 563TH-RS does all that and more.

• Swing-out quick-grip supply shafts
• Drop-in quick-grip rewind shafts
• Photoelectric eye for safety
• Includes rear rewind with Rotary Slitters
• Swing-up feed table & 38" output height
• Metal Alloy heater reduces breakage
• 4.4" diameter rollers
• Roller gap measurement scale

Specifications

Specifications

Laminating Width: 63"
Roller Diameter: 4.5"
Roller Gap: 1"
Rear Rewind with Slitters: Included
Maximum temperature: 140° F
Laminating Speed: 0-20ft/min
Pressure Adjustment: Hand Wheel
Heat method: Metal Alloy heater
Max. roll diameter: 8" OD (top); 16" OD (bottom)
Supply Shafts: 2 Swing-out
Tension Adjustment: Single knob
Power Supply: 110v 12A
Power Consumption: 1320W
Foot Pedal: Included
Stand with casters: Included
Dimensions: 87" x 26.5" x 52.5"
Net Weight w/ stand: 491 lbs.
