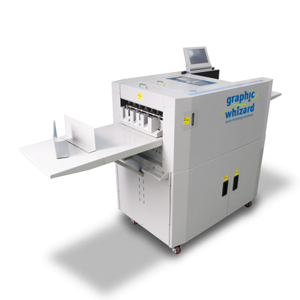

GW PT8336 SCC Auto Feed/Slit Creasing System

GM-GWH-PT8336SCC

Ea. (1)

The PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 8336CC Multi can quickly switch from perfing to creasing to prevent digital toner cracking.

• 4" deep pile feeder
• Multi accessory output
• 9" color touchscreen
• Built in job creator and 64 job program memory
Interested in this product?
POA

Description

Description

The PT 8336SCC Multi is a complete full-bleed finishing system designed for the digital marketplace. Equipped with interchangeable creasing/perfing dies, the PT 8336SCC Multi can quickly switch from perfing to creasing to prevent digital toner cracking. Strike perf capability alloys that the PT 8336SCC Multi to do partial perfs in both directions for “T” or “box” perfs.

The PT 8336SCC Multi makes short work of; business cards, greeting cards, invitations, brochures, pamphlets, catalogs, posters, book/CD covers, photographs, tent cards, and more by simply loading the high capacity 4” vacuum pile feeder. Processing sheets up to 400 gsm at speeds of 25 sheets per minute (8.5” x 11”, 2 cuts, 1 crease) the PT
8336SCC Multi is an ideal finishing solution to maximize efficiency while minimizing operator intervention.

  • 25 sheets per minute
    8.5” x 11” 2 cuts, 1 crease
  • 110-130V, 50/60Hz, 15A
  • EFI Fiery Driven print engine
  • Save up to 70% in set up time, reduce cost & waste
  • Minimum 8.26″ wide x 8.16″ long (20.98cm x 20.72cm)
    Maximum 13″ wide x 26.5″ long (33.02cm x 67.31cm) 40” handfed (104 cm)

Specifications

Specifications

Feed Capacity 4″
Feeder Type Air suction Pile Feeder
Input Paper Weight 150-400gsm
Input Paper Size 8.26″ x 8.16″ (20.98cm x 20.72cm)
13”x 26.5” (33.02cm x 67.31cm)
40” Hand Fed (104cm)
Minimum finished cut size 1.96″ x 1.89″
Speed Up to 25 sheets per minute
Crease Depth Adjustment 5 steps auto adjust
Crease Width Options 4 .6, 1, 1.2, 1.4 mm
Crease Direction Up or Down
Number of Slitters 6, variable gutters
Integrated Conveyor Outfeed Option Yes
Cut Mark Image Shift Compensation Yes (Lead and side)
Linear Perforating Yes
Strike Perf Option Yes
Cross Perforating Yes
Micro Perforating Yes 24/48 TPI
Custom Job Memory 64
Double Sheet Detect Yes Ultrasonic
Bar Code Job Recognition Yes
9″ Color Touchscreen Yes
Built in Job Creator Yes
Warranty 3 year parts and electron
