Eagle X-7050 Desktop Laser Engraving Machine

GM-EAG-X7050

Ea. (1)

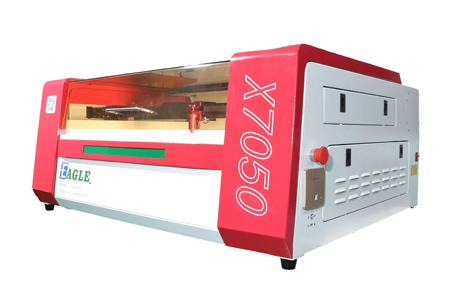

The X-7050 desktop laser engraving machine, with 27.5″ x 19.5″ (700 x 500mm) working area, offers a portable desktop solution for high quality engraving and cutting of acrylics, cardboard, wood, textiles, two-color sign laminate, stones and much more. Eagle laser machines are the most robust, accurate, and reliable on the market.

• Portable size

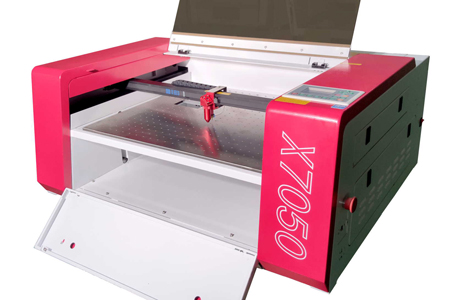

• Motorized Working Table and Front-Door Table Access
• Automatic Focusing
Interested in this product?
POA

Specifications

Specifications

Working Area: 27.5″ x 19.7″ (700 x 500mm)
Max. Workpiece Height: 6.7″ (170mm) by motorized Z axis, can accommodate abnormally shaped work pieces.

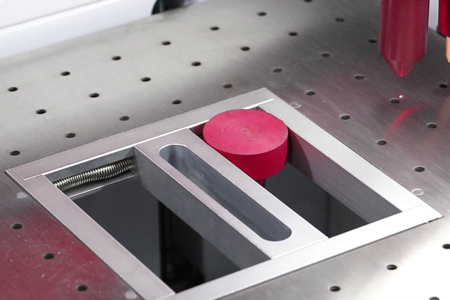

Working Table*: A stainless steel plate table for engraving, and a full-support honeycomb table for cutting.

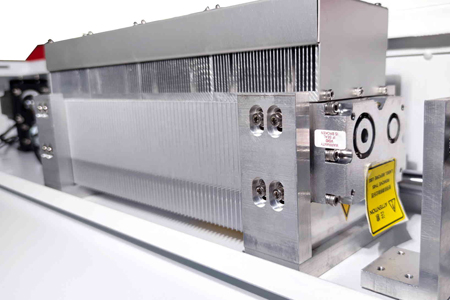

Laser Source: CO2 RF Metal Laser Tube
Laser Power: 40W
Laser Configuration: Single laser
Focus Lens: Standard 2″ (50.8mm)
Software: EagleWorks CAD/CAM and EaglePrint print driver, compatible with Windows 7/8/10. 100% support LightBurn software.
Machine/PC Connection: USB / FLASH / LAN / WLAN
Operating Mode: Engraving / Cutting / Combined

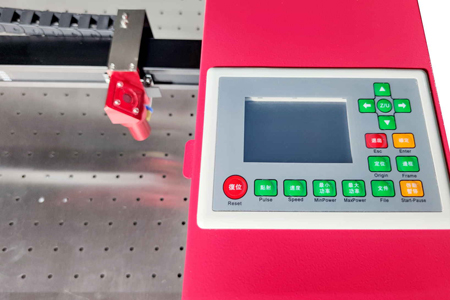

Control Interface: True Color TFT LCD panel with function buttons.
Memory Capacity: Multiple jobs storage up to 128M.
Resolution: Up to 4064 DPI.
Motion System: Transmission with belt on advanced linear rails, driven by stepper motors.
Accessories: Air assist pump and exhaust blower integrated inside the machine cabinet.
Electrical Requirement: 220V/50Hz, single phase, up to 1.0kW.
Size: 43.3″ x 37.4″ x 18.5″ (1100 x 950 x 470mm)
Net Weight: 260lb (120Kg)
