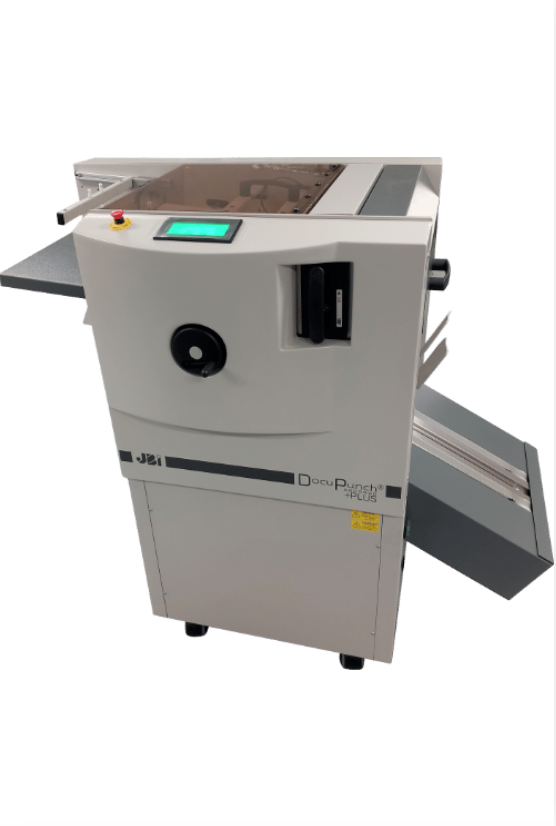

Docupunch +PLUS Automatic Punching Machine - High Speed

GM-JBI-DOCUPUNCH+

ea (1)


The DocuPunch® PLUS is a highly versatile, fully automatic punching machine built for medium-volume runs across a wide range of materials—from 80 to 250 gsm—including acetates, plastic covers, and a variety of punching patterns such as thumb cuts. It handles a maximum punched edge of 330 mm (13″) and can process pre-collated tabbed sheets with ease, delivering an impressive output of up to 45,000 sheets per hour (80 gsm).

• Punches up to 45,000 sheets/hr
• Pick thickness: 0.4-1mm
• Selectable Speeds: up to 4,200 cycles/hour
• Paper thickness: 5.5” x 5.5” up to 13” x 12”
POA

Description

Description

The DocuPunch® PLUS is a highly versatile, fully automatic punching machine built for medium-volume runs across a wide range of materials—from 80 to 250 gsm—including acetates, plastic covers, and a variety of punching patterns such as thumb cuts. It handles a maximum punched edge of 330 mm (13″) and can process pre-collated tabbed sheets with ease, delivering an impressive output of up to 45,000 sheets per hour (80 gsm).
Engineered for the On-Demand market, it offers lightning-fast setup in under a minute, tool-free die changes in seconds, and true hands-free operation—freeing your operator to focus on other tasks. With its compact footprint and heavy-duty casters, the DocuPunch® PLUS is easy to move and fits comfortably into even the most space-restricted environments.

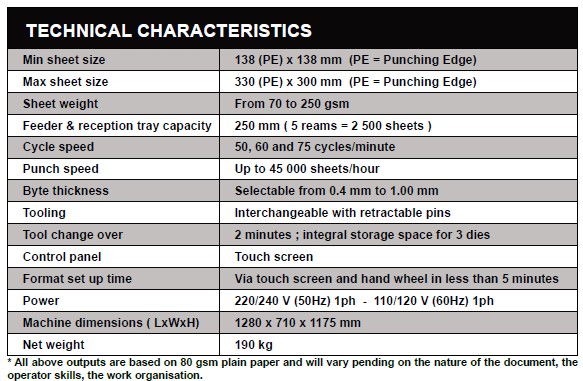

Specifications

Specifications

Resources

Resources

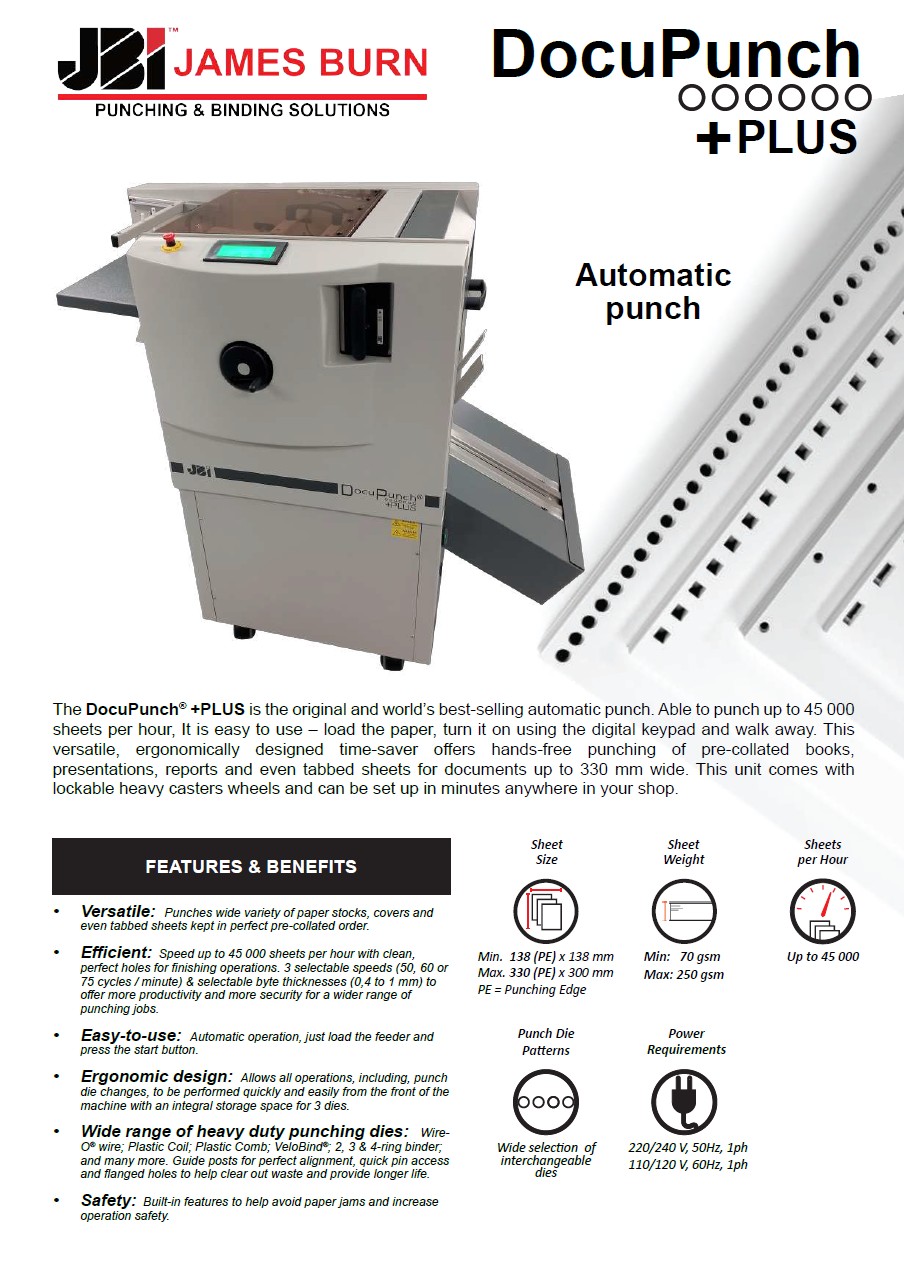

Literature

Literature

Interested in this product?
