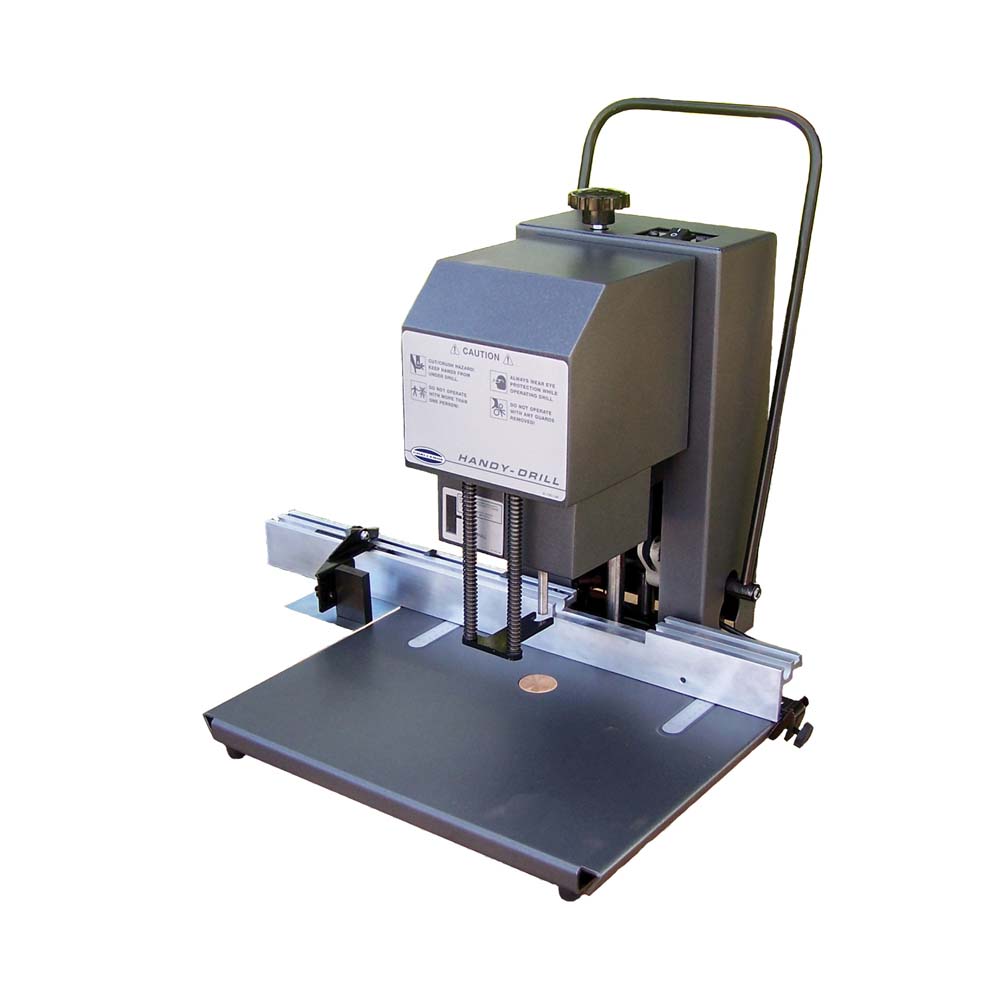

Challenge Handy Drill

GM-CMC-HANDYDRILL

Ea. (1)

Handy Drill with 2-1/2” lift capacity. Machine can be converted to a 2” maximum lift capacity for a wider range of available hole sizes (1/8” to 1/2").

• Safety features
• Conveniently located chip collector cups
• Adjustable backgauge stops
• 4 different drill bit sizes (1/4”, 5/16”, 3/8”, 1/2")
POA

Description

Description

2-1/2” lift capacity

4 different drill bit sizes (1/4”, 5/16”, 3/8”, 1/2"). Machine can be converted to a 2” maximum lift capacity for a wider range of available hole sizes (1/8” to 1/2").



Safety feature

Spindle motor automatically turns on when the pull-down lever is moved and automatically switches off when the lever returns to the up position.



Conveniently located chip collector cups

Located around the spindle, they include a sight gauge to signify when the cups are full and need to be emptied. The cups also serve as safety covers with interlock switches. When removed to change the drill bit or to empty the paper chips, power to the motor is locked out until the cups are replaced.



Adjustable backgauge stops

The backgauge includes 4 adjustable stops for drilling multiple hole pattern jobs. Just flip the switch and move your pile to the next setting.

Specifications

Specifications

Drill Head Operation Hand Lever
Drill Sizes Available 1/8" to 1/2" / 3 to 13 mm
Lift Capacity 2-1/2" / 6.4cm
Minimum Distance Between Holes 3/8" center to center / 9.5 mm
Maximum Distance Drill To Side Guide 9-7/8" / 25.1 cm
Maximum Margin Hole Center To Sheet Edge 2-1/2" / 6.4 cm
Side Guide Trip Manual
DIMENSIONS
Table Space 18" x 19" / 46 x 48 cm
Overall Height 22-3/8" / 56.8 cm
Overall Width 24" / 61 cm
Overall Length 21.2" / 53.9 cm
Net Weight (approximate) 70 lbs / 32 kg
Shipping Weight (approximate) 90 lbs / 41 kg
ELECTRICAL

115 Volts, 1 Phase, 60 Hz, 2.7 Amps (service size 15 Amps)
