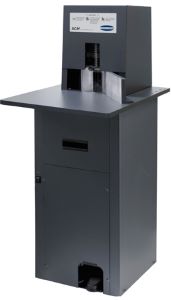

Challenge Cornering Machine (Hydraulic)

GM-CMC-SCM

Ea. (1)

The Challenge hydraulic powered Single Cornering Machine delivers up to ten times more cornering capacity than electric powered table-top models in the market.

• 6 Sizes of Cornering Blades
• Handles Any Size Sheet
• 4" Lift Capacity
• Precise Cutting Action
• Gravity Chip Disposal
Interested in this product?
POA

Description

Description

The Challenge hydraulic powered Single Cornering Machine delivers up to ten times more cornering capacity than electric powered table-top models in the market. The SCM’s powerful hydraulic system and robust knives easily handle difficult stocks such as index cards and coated materials. The shear cutting mechanism preserves knife sharpness and maintains high quality cuts. Designed and built in Michigan - USA, the Challenge SCM is a valuable machine for any print shop. Also available in a manual model for lower capacity requirements.

FEATURES

• Handles any size sheet

• Gravity chip disposal with large waste bin

• 6 sizes of cornering knives to choose from

HYDRAULIC MODEL

• 4” / 10 cm stack height

• Hydraulic powered cutting

• Plexiglass safety shield

• Energy saving motor turns off between cycles

MANUAL MODEL

• 2” / 5 cm stack height

• Foot activated cutting

Specifications

Specifications

Maximum Lift Height 4" / 10 cm
Range of Lift Widths Open
Corner Sizes Handled 1/8" to 5/8" / 3 - 16 mm
DIMENSIONS
Table Depth 24" / 6 cm
Table Width 20-1/4" / 51.5 cm
Table Height 36" / 91 cm
Overall Height 52" / 132 cm
Floor Space Needed 24" x 20-1/4" / 61 x 51.5 cm
Net Weight (approximate) 190 lbs / 86 kg
Shipping Weight (approximate) 265 lbs / 120 kg
ELECTRICAL
1 Phase, 60 Hz, AC.   Pump: 1/2 HP
115 Volts, 13.5 Amps (service size 20 Amps)
