Starting Book Size Maximum
(spine length x book width): |
13" x 13" (330 mm x 330 mm) |
|
Starting Book Size Minimum
(spine length x book width)
- Near-line single mode:
- Near-line multiple mode:
- In-line single mode:
- In-line multiple mode:
|
7" x 5" (178 mm x 127 mm)
7" x 8" (178 mm x 203 mm)
7" x 8" (178 mm x 203 mm)
7" x 9" (178 mm x 229 mm)
|
Finished Book Size Maximum
(spine length x book width): |
12.1" x 12.9" (307 mm x 328 mm) |
Finished Book Size Minimum
(spine length x book width): |
5.82" x 3.94" (148 mm x 100 mm) |
| Minimum Trim, all sides: |
.100" (2.5 mm) |
| Maximum Trim - Top: |
6" (152 mm) |
| Maximum Book Thickness: |
2" (51 mm) |
| Throughput |
Up to 700 books per hour (multi-book mode)
|
| Memory: |
99 Book Jobs |
| Set-up Time for Book Size Change: |
Under 6 Seconds |
COMPRESSED AIR REQUIREMENTS

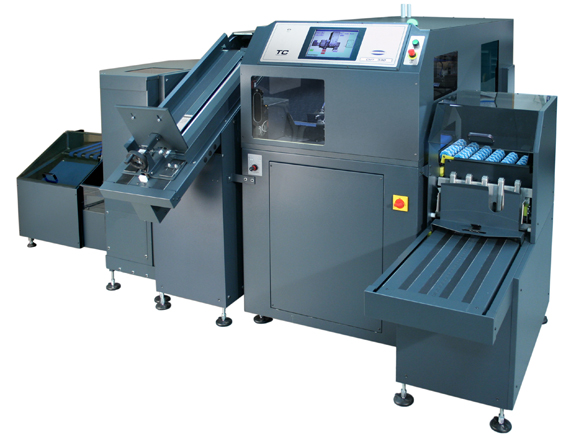

The CMT-330TC requires 80 - 90 PSI (550 - 620 kPa) regulated, dry, non-lubricated compressed air at a minimum of 9 CFM at 90 PSI (255 LPM at 620 kPa). The required minimum air quality rating is ISO 8573.1 Class 2.4.2 (solids < 1 micron, pressure dew point < 38°F @100psig, and oil content < .08 ppm)
The following two compressor systems are commonly used with the CMT-330TC. Other equivalent systems may be used also. The compressor system must include an air dryer capable of ISO Class 4 or better (pressure dew point < 38°F @100psig). Failure to use dry, non-lubricated compressed air that meets or exceeds the above requirements may cause damage to the machine and will result in THE WARRANTY BEING VOIDED.
System 1 - Traditional piston type compressor. Powerex AS0203 - 2 hp climate control compressor with built-in refrigerated dryer, electronic auto drain and starter.
System 2 - Rotary scroll type compressor. The advantage to this type is minimum maintenance and very quiet operation (49 - 51 db). Powerex SES0308-208v with ACO100010 factory installed refrigerated dryer and auto drain.
