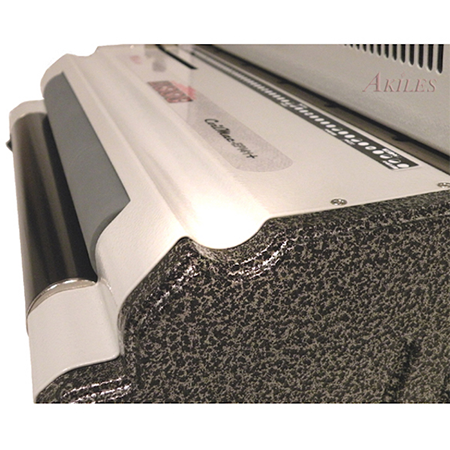

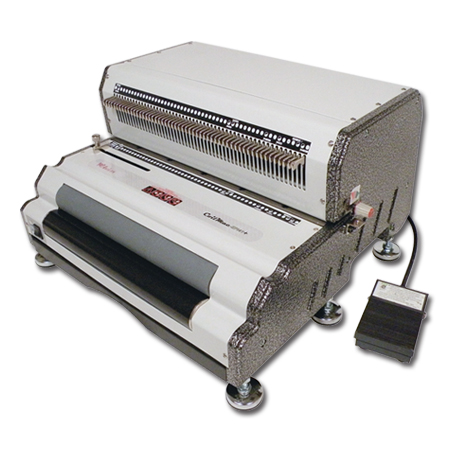

Akiles CoilMac-EPI Plus Electric Punch & Inserter

GM-AKI-ACM_EPI41+

Ea. (1)
With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.

• Round Holes: Standard 4mm round holes.
• 5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.
• STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
Interested in this product?
US$3,239.00

Description

Description

All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.
Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).
High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).
Super Strength Punch Mechanism with exclusive “Precision Guiding SystemTM” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation everytime.
Electric Reverse (Anti-Jam) Function: For trouble-free punching.

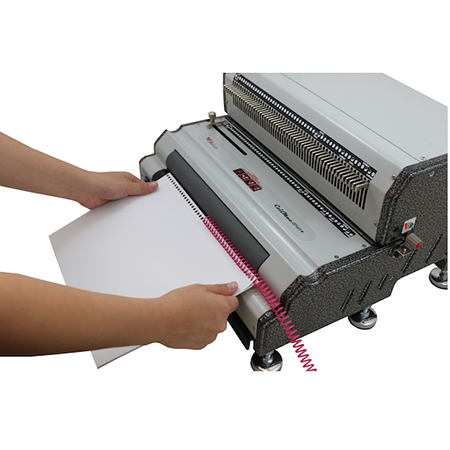

Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8” EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.
Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).
U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.
Side Margin Control: Provides an evenly centered punch for all document sizes.
Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document’s tear resistance.
Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”.
Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
Extra-High-Capacity Waste Drawer
6 Height-Adjustable Non-Skid Metal Feet
CE Certification: All components certified & approved by CE for most stringent safety requirements.
Includes Coil Diameter Selector & Premium Oval Coil Crimpers

Specifications

Specifications

Pitch Available:  Letter 4:1 (0.248”)
Operation: Punching – Electric
Inserting – Electric
Single Punch Capacity: Up to 25 sheets for 20 lbs paper.
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)
Suggested Binding Capacity: Up to 1″ (electric)
Up to 2″ (manual)
Single Punch Length: 13″ (54 holes)
Hole Size: Oval (4mm x 5mm)
Disengageable Pins: All 54
Weight & Volume: 75 lbs & 2.9 CbFt
