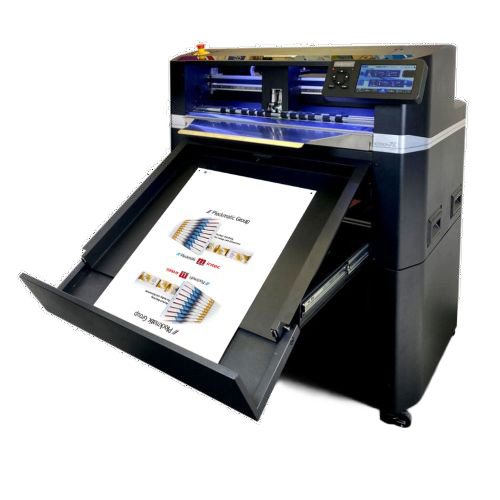

The ColorCut SC7100 Pro-T XL is a sophisticated, fully-automatic cutting and creasing system designed to bring the power of flatbed, sheet-fed, and tangential technologies into a single, compact unit. Engineered for busy print departments, it handles large-format media up to B2+ ($720 \text{ x } 520\text{mm}$) and eliminates the need for expensive physical dies by utilizing a completely digital workflow. This versatile system allows users to produce anything from point-of-sale displays and packaging to kiss-cut labels in any custom shape directly from pre-printed artwork.
The device is built for total unattended production, featuring a high-capacity auto-feeder that can stack and process up to 1,000 sheets. It employs a sophisticated vacuum feed belt paired with an automatic "air blade" and separation fingers to ensure even difficult or laminated media feeds faultlessly without double-feeding or curling. Its "Grip and Drive" dual-feed system provides exceptional stability, allowing the machine to cut closer to the edges of the media to maximize usable space.
Equipped with a 9th generation Vision3 CCD camera, the SC7100 Pro-T XL uses a QR code-driven workflow to instantly retrieve cut files on the fly. This allows for "HELD" mode operation, where repetitive high-volume jobs can be run from a USB drive without a dedicated computer connection or highly skilled operators. The ergonomic design includes a 7-inch immersive touch screen for live visual feedback and a maneuverable, free-standing frame that fits easily into any professional print shop environment.
Features
- Dual Tool Head Precision: Incorporates both a passive drag-cut tool and an active tangential creasing wheel, providing the necessary pressure (up to $2,500\text{gf}$) to process paperboard and folding box board up to 450 microns.
- Intelligent Job Retrieval: Utilizes QR codes and SmartMark registration to automatically identify and cut mixed jobs within the same stack, even if the sheets are rotated.
- Optimized Media Handling: Features a self-centering function and an extendable paper tray to accommodate custom sizes, while "SmartTags" keep cut items securely in the sheet for a tidy finish in the catch tray.
