Challenge Titan 200 Pro Paper Cutter

GM-CMC-TITAN200PRO

Ea. (1)


Built on a legacy of innovation and durability dating back to 1870, the Titan 200Pro exemplifies Challenge’s commitment to excellence. Its robust cast iron and steel construction ensures long-lasting performance, while features like UHMW gib surfaces, LED cut line lights, and a one-inch thick solid tool-grade aluminum table deliver years of low-maintenance, trouble-free operation.

• Fully hydraulic cutting and clamping
• Solid cast iron and steel construction ensure years of trouble-free operation
• Fully programmable controller offers intuitive operation
POA

Description

Description

In today’s fast-paced digital print environment, making the right equipment choices can be challenging. With so many options in wide format, inkjet, and digital print technologies, it’s easy to feel overwhelmed. But when it comes to selecting your next paper cutter, the choice is clear—step up to the Titan 200 Pro.

Built on a legacy of innovation and durability dating back to 1870, the Titan 200 Pro exemplifies Challenge’s commitment to excellence. Its robust cast iron and steel construction ensures long-lasting performance, while features like UHMW gib surfaces, LED cut line lights, and a one-inch thick solid tool-grade aluminum table deliver years of low-maintenance, trouble-free operation.

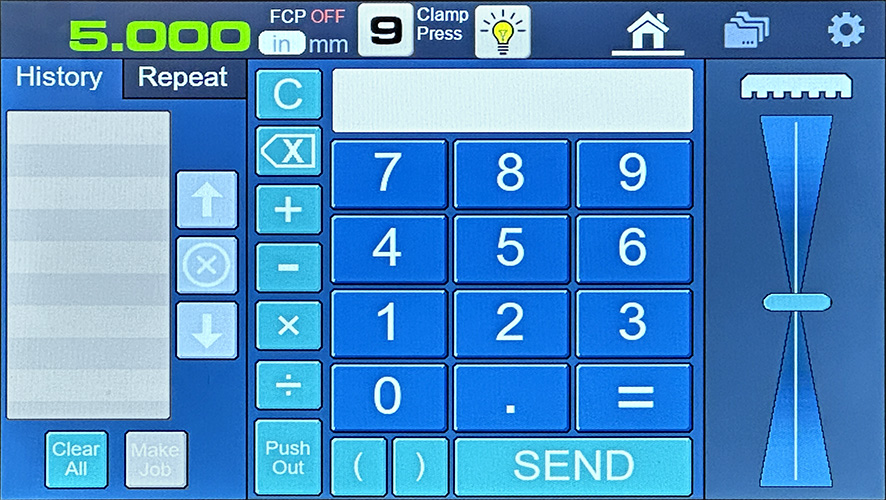

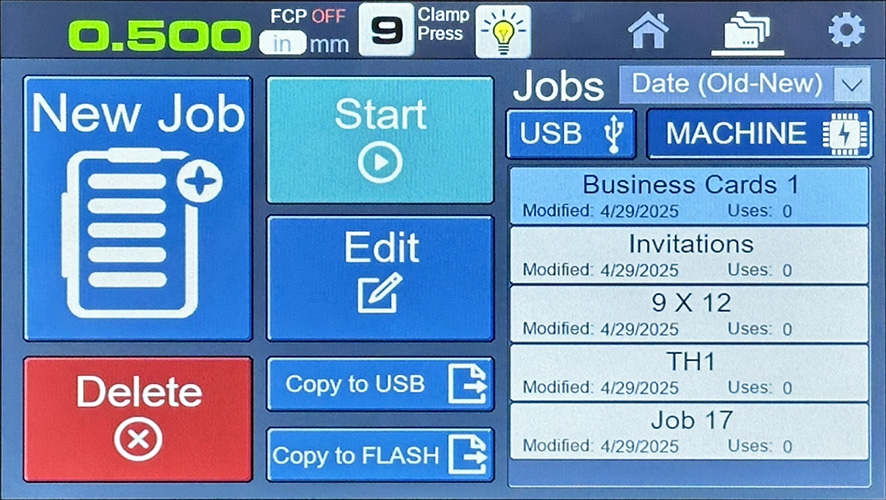

The Titan 200 Pro is designed with user-friendly technology, including an intuitive touchscreen controller for easy job programming. Electronic clamp pressure can be customized for each step of a job, and built-in diagnostics guide operators through any issues with ease.

Safety is paramount. The Titan 200 Pro meets the highest industry standards with Category 4 safety eye beams, an enclosed rear table, dual-button cut activation, and a knife safety latch—all contributing to its UL and CE certifications.

Proudly made in the USA, the Titan 200 Pro is the smart, reliable choice for your cutting needs.

  • Fully hydraulic cutting and clamping
  • Solid cast iron and steel construction ensure years of trouble-free operation
  • Solid 1-inch thick tool grade aluminum table offers the strong work surface required in production environments
  • Bright red LED line light is easy to see and needs no future replacement
  • Standard electronic clamp pressure adjustment
  • Fully programmable controller offers intuitive operation and up to 9,801 total cut position storage

Specifications

Specifications

General

Maximum Cutting Width 20" / 50.8cm
Minimum Cut w/o False Clamp Plate 1/2" / 13mm
Minimum Cut w/ False Clamp Plate 1-7/8" / 48cm
Maximum Cut Depth 20" / 50.8cm
Clamp Opening w/o False Clamp Plate 3-1/4" / 8.3cm
Clamp Opening w/ False Clamp Plate 3" / 7.6cm
Clamping Method Hydraulic and Manual
Backgauge Control Motor Powered

Dimensions

Table Space (in front of knife) 15-1/4" / 39cm
Table Space (behind knife) 20" / 51cm
Total Height 53" 135cm
Total Width 37-1/2" / 95cm
Total Length 49-5/8" / 126cm
Net Weight (approximate) 795 lbs / 361 kg
Shipping Weight (approximate) 920 lbs / 418 kg

Electrical

Motor Type Standard Motor
Hydraulic Pump 1-1/2 H.P. One Phase, 60 Hz, AC
Power option 1 220 Volts, 12 Amps (service size 15 Amps)
Power note Requires receptacle type: NEMA 6-15R or 6-20R
