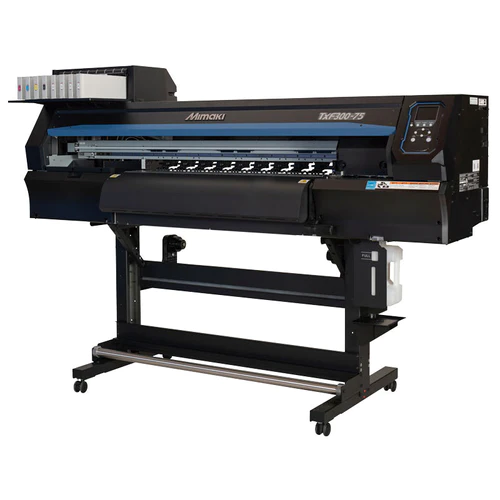

Mimaki TxF300-75 DTF (Direct-To-Film) Printer

PM-MIM-TXF300_75

Ea. (1)
We are excited to introduce our newest product to the lineup—the Mimaki TxF300-75 DTF printer. With two heads, this upgraded version builds upon the TxF150-75, providing improved printing speeds of up to 300%, while upholding the exceptional reliability you've come to expect.

• Mimaki Circulation Technology (MCTv2)
• Degassed aluminum ink pack prevents nozzle clogging
• Nozzle check unit (NCU) & Nozzle Recovery System (NRS)
POA

Description

Description

Key Features

  • One-Year Complete Warranty, including printheads and onsite support
  • Reliable ink system design to reduce clogging and downtime
  • Better ink consistency than other brands and models
  • Self-Cleaning
  • Groundbreaking ink technology circulating through the damper
  • Nozzle Detection
  • 31.5” Printing Width
  • Onsite certified Mimaki technician setup and training
  • DTF University login with printer and industry-specific how-to videos
  • World-class support from DTF Superstore and Mimaki USA
  • Included with the Mimaki TxF300-75 Printer:
  • Two day onsite setup and training
  • Inks, powder, and film to get started
  • 1-Year Complete Coverage Warranty* - Includes printheads and onsite support if needed. *Head strikes are not covered under warranty. See Mimaki Warranty for details



Core Technologies

  • Nozzle Check Unit (NCU)- Clogged nozzles are automatically detected and cleaned for stable, high-quality printing
  • Nozzle Recovery System (NRS)- Automatically replaces clogged nozzles with operational nozzles when an outage is detected for continuous, high-quality printing



Variable Dot Technology

  • Optimizes ink droplet size for smooth color gradients and for fine line details
  • Mimaki Advanced Pass System 4 (MAPS4)- Incorporates an advanced algorithm that disperses ink droplets between passes in gradation-like tones to reduce banding and uneven color printing.
  • Waveform Control (WFC) - Utilizes finely-tuned frequencies for inks’ specific gravity and viscosity to precisely shape and place individual drops to produce a shape image quality.



Degassed Aluminum Pack Ink with Safety Design

  • Degassed aluminum pack to add ecology and economy to stability
  • Uses the degassed aluminum pack method to supply ink, which has been proven at Mimaki for over ten years. Deaeration prevents oxygen and other gasses from mixing with color ink and white ink and reduces nozzle clogging (nozzle loss).
  • The aluminum vacuum pack design prevents air bubbles from entering the ink pack. Compared to the ink bottle method, the amount of plastic used can be reduced, leading to less plastic waste.



3-Way Intelligent Heater

  • Independent control of pre/print/post heater temperatures
  • Pre and print heaters control the spread of in on the media for blur-free image quality
  • Heating the media to achieve blur-free image quality
  • Post heater accelerates ink drying



White Ink Circulation System - Mimaki Circulation Technology v2

  • Newly equipped with MTCv2 (Mimaki Circulation Technology Version 2), an advanced system that controls ink sedimentation by circulating ink consistency
  • The ink is constantly agitated and supplied without sedimentation by circulating it into the damper (filter at the top of the head).

Specifications

Specifications

Printhead

On-demand piezo head

Print Resolutions

720dpi, 1,440dpi

Maximum Print Width

31.5" (800mm)

Maximum Media Width

31.5" (810 mm)

Maximum Media Thickness

Up to 0.04" (1mm)

Maximum Media Weight

Up to 99.2 lbs. (45.0 kg)

Ink Type

Heat transfer pigment ink PHT50 (C,M,Y,K,W), 600ml ink pack (500ml for white only)

Interface

Ethernet 1000BASE-T / USB2.0

Power Supply

Main unit: Single phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1

Power Consumption

100V system: 1.44kW, 200V system: 1.92kW

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

77.4″ x 27.6″ x 54.8″ (1,965mm x 700mm x 1,392mm)

Weight

277.8 lbs. (126 kg)

Certifications

VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
