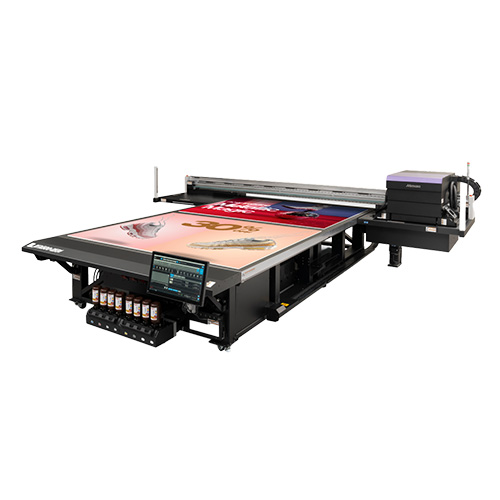

Mimaki JFX600-2531 Flatbed Printer

PM-MIM-JFX600_2531

Ea. (1)


The JFX600 Series large-scale flatbed printers deliver rapid production capabilities, achieving complete board printing in less than a minute. Equipped with a swift registration system and semi-automated upkeep, these printers offer expansive printing dimensions of 8 feet by 4 feet and 8 feet by 10 feet. They seamlessly integrate into both high-volume packaging or point-of-purchase environments and niche markets like architectural graphics and interior design.

• 16 print heads
• Print speeds up to 2,152 square feet per hour
• Production workflow ready with MDL support
POA

Description

Description

With a maximum print speed of 200 m2/hr and 6-color ink printing, this printer is specifically desinged for high speed and high quality printing required for large format graphics printers. It features three types of high performace UV inks to choose from, a 4'x8' table, MPC (touch screen monitor connected to the printer) and safety devices. The JFX600 has an amazingly high productivity rate which is maximum 330% faster than the previous JFX500 model.

  • 16 print heads
  • Waveform control enables sharp expression of text, ruled lines and edges
  • MAPS (Mimaki Advanced  Pass System 4) realizes smooth prints
  • Three different ink dot sizes are used to ensure high quality inks with reduced graininess
  • 2.5D Texture maker to add more value to prints
  • White ink and clear ink available
  • Inkjet priner enhances ink adhesion to glass, metal or surface-treated materials
  • Mimaki's advanced Nozzle Check Unit, Nozzle Recovery System and Circulation Technology provides reliable functions for a stable operation
  • Table size will accommodate 4'x8' media
  • Vacuum area is divided into two sections



Specifications

Specifications

Printhead

Sixteen on-demand piezo heads in a staggered array

Print Resolutions

600 x 600dpi, 600 x 1,200dpi, 1,200 x 1,200dpi

Print Speed (4 Color Mode)

up to 2,152.78 SqFt/Hr (200.0 m2/h)

Maximum Print Area

98.43″ x 122.05″ (2,500 x 3,100 mm)

Maximum media size

100.43″ x 124.05" (2500 mm x 3150 mm)

Maximum Media Thickness

up to 2.36″ (60 mm)

Maximum Media Weight

10 lb/ft² (50kg/m²)

Ink Type

Rigid:

LH-100 CMYK, Lc, Lm, W, Clear

Flexible:

LUS-150 CMYK, LC, Lm, W w/LUS-100 Clear

LUS-120: CMYK, LC, LM, W, Clear

Interface

Ethernet 10,000 BASE-T

Power Supply

AC 200 – 240 V, 50/60 Hz

Power Consumption

Less than 4.8kWhr x3

Operational Environment

Temperature 68° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

213″ W x 191″ D x 67″ H (5,400mm × 48,500mm ×1,700mm)

Weight

3,527 lbs (1,600 kg)

Certifications

UL 775 ETL, CE Marking (EMC Directive,Low Voltage Directive, Machinery Directive), RoHS / REACH / EAC

LH-100 UV curable ink Cyan Magenta Yellow Black White Clear Primer
1L Bottle LH100-C-BA LH100-M-BA LH100-Y-BA LH100-K-BA LH100-W-BA LH100-CL-BA



UV curable ink (LUS-120) Cyan Magenta Yellow Black Light Cyan Light Magenta White Clear
1L Bottle LUS12-C-BA LUS12-M-BA LUS12-Y-BA LUS12-K-BA     LUS12-W-BA LUS12-CL-BA



UV curable ink (LUS-150) Cyan Magenta Yellow Black White Clear Primer
1L Bottle LUS15-C-BA LUS15-M-BA LUS15-Y-BA LUS15-K-BA LUS15-W-BA (Use LH-100)



UV Primer (PR-200)             Primer
1L Bottle             PR200-Z-BA
