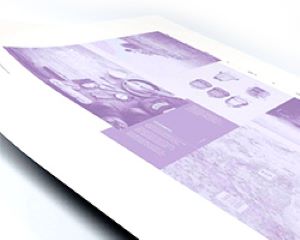

Kodak SXTR Plates 665" x 945" 30mm 30/Box

XTRA CLEAR
SONORA XTRA Plates boast image contrast three times stronger than that of SONORA X. It’s easy to see even the smallest image details on the plate, and you can be confident adding automation, thanks to SONORA XTRA’s improved readability with vision systems and sorting equipment.

XTRA QUICK
SONORA XTRA Plates are quick enough for the fastest platesetters, so you can get more out of your existing equipment, or you can upgrade your CTP to get to press even faster. With the T-speed KODAK MAGNUS Q800 Platesetter, you can image up to 80 SONORA XTRA Plates per hour.

XTRA TOUGH
A tougher substrate and more durable coating make SONORA XTRA Plates robust enough for just about any print environment. And thanks to SONORA XTRA’s enhanced scratch and scuff resistance, you can keep the presses running with no slowdowns.

XTRA LONG RUNS
SONORA XTRA Plates meet the needs of most printers currently using unbaked processed plates – with run lengths of up to 400,000 impressions on web presses, 250,000 impressions on sheetfed
presses, and 100,000 impressions
for UV-ink applications.

Reduce Waste for Cost and Environmental Savings

By eliminating the need for chemicals, water, and electricity from processing, SONORA
XTRA Plates help you reduce environmental waste, meet local regulatory requirements,
and appeal to customers concerned about sustainability

SONORA XTRA Plates help printers do their part by completely eliminating the water
used in prepress.
• No water to rinse the plate in a plate processor
• No water to mix concentrated chemistry
• No water to dilute your finishing gum
• No water to clean the plate processor or clean-out unit.

Plate

Non-ablative, thermal, negative-working (write-the-image) process free plate.
No debris removal system required.

Application

High-quality, long-run plate for sheetfed, packaging, web and all UV print applications

Substrate

Electrochemically grained and anodised aluminium substrate

Gauge

0.15, 0.20, 0.30, and 0.40 mm

Spectral sensitivity

800 – 850 nm

Platesetter compatibility

Recommended: KODAK TRENDSETTER, MAGNUS, and ACHIEVE Platesetters.
SONORA XTRA Plates are compatible with platesetters from all major suppliers.

Laser energy required

90 to 120 mJ/cm2 depending on platesetter.
Provides maximum productivity on most platesetters.

Resolution

1 to 99% @ 200 lpi and FM20 capable
Up to 450 lpi is possible, dependent upon capability of imaging device.

Run length

• Up to 400,000 impressions with heatset/coldset web presses
• Up to 250,000 impressions with sheetfed presses
• Up to 100,000 impressions for offset packaging (non-UV ink)
• Up to 100,000 impressions for UV-ink applications
Dependent upon image resolution, press, press chemistry, ink and paper conditions.

Safelight @400 Lux

White = 2 hours
C20 UV-cut = 16 hours
G10 Yellow = 48 hours
