Eagle X-1309 CO2 Laser Cutting Machine

GM-EAG-X1309

Ea. (1)

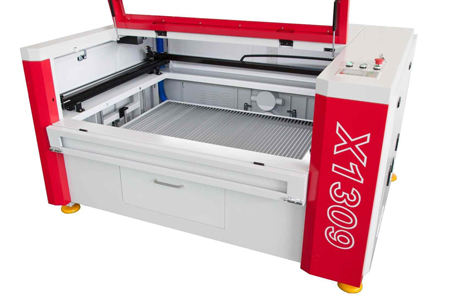

The X-1309 CO2 laser cutting machine, with 51″ x 35″ (1300 x 900mm) working area, features a powered up and down working table with 8″ (200mm) adjustable space, offers an economical solution for general purpose, high quality cutting and engraving of acrylics, cardboard, wood, textiles, two-color sign laminate, stone, and much more. Eagle laser machines are the most robust, accurate, and reliable on the market.

• Full Pass-Through Capability

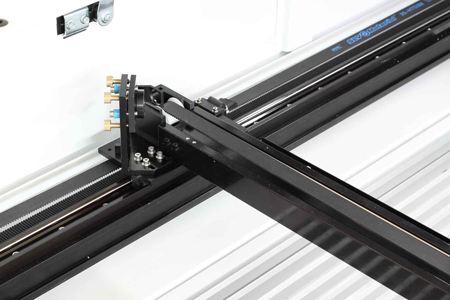

• Robust, High-Precision Slides
• Superior Mirrors and Mirror Mounts
POA

Description

Description

Which laser configuration is best for me?
You should choose single laser configuration if your primary needs is processing work pieces larger than half of the working table.

Dual laser systems include two laser heads, allowing you to cut or engrave twice as much material in the same amount of time. Each laser has an independent set of laser source, optics and power supply which you can enable or disable according to processing needs. The spacing between the heads can be adjusted at any time using just a screwdriver.

130W CO2 laser is the most cost effective choice for cutting (can cut acrylic up to 1" in thickness). 150W CO2 laser is best suitable for cutting ultra-thick materials (can cut acrylic up to 1-1/4" in thickness). While 100W CO2 laser is better choice for precise engraving and cutting a little thin material (can cut acrylic up to 3/4" in thickness).

What about motor options?
With servo motors from world’s leading supplier, the laser head of the X-1309 can move very fast at extremely high resolution. A step size of just 6.25μm gives the machine a resolution of over 4000DPI. In arbitrary-direction cutting, the head can accelerate at 2 m/s2 (0.2G), while for X-axis scanning during engraving, acceleration up to 20 m/s2 (2G) is possible. The X-1309 with high quality stepper motors sacrifices only a small amount of performance.



Specifications

Specifications

Working Area: 51″ x 35″ (1300 x 900mm) Can fit uncut sheets or long work pieces (along Y direction) with full pass-through capability.
Max. Workpiece Height: 8″ (200mm) by motorized Z axis, can accommodate abnormally shaped work pieces or an optional rotary unit for use with pipe and rod stock.
Working Table*: An aluminum strip table for hard and flammable materials (acrylic, cardboard, wood, etc.), and a full-support honeycomb table suitable for soft material processing (paper and textiles).
Laser Source: CO2 Sealed Glass Laser Tube
Laser Power*: 100W / 130W / 150W
Laser Configuration*: Single / Dual laser(s)

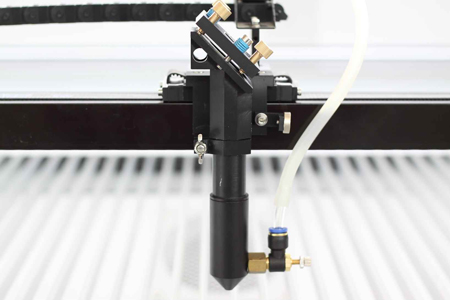

Focus Lens*: Standard 2.5″ (63.5mm), optional 4″ (101.6mm), or 2″ (50.8mm, can be equipped with a special laser pen).
Software: EagleWorks CAD/CAM and EaglePrint print driver, compatible with Windows 7/8/10. 100% support LightBurn software.
Machine/PC Connection: USB / FLASH / LAN
Operating Mode: Cutting / Engraving / Combined

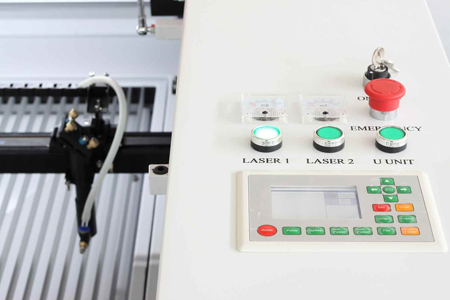

Control Interface: True Color TFT LCD panel with function buttons.
Memory Capacity: Multiple job storage up to 128M.
Resolution: Up to 4064 DPI.
Motion System*: Transmission with belt on advanced balanced bearing rails.
Driven by stepper / servo motors.
Accessories: Air assist pump, industrial chiller and exhaust blower included.
Electrical Requirement*: 220V/50Hz, single phase, up to 2.5kW~4.5kW depends on configurations.
Size: 75″ x 67″ x 43″ (1900 x 1700 x 1100mm)
Net Weight: 880lb (400Kg)
