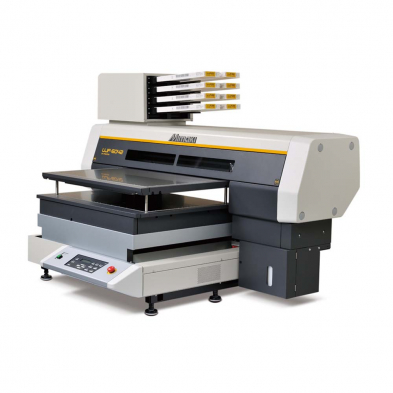

Mimaki UJF6042-MKII UV-LED Flatbed - Discontinued

The new UJF MkII Series printers are the next generation models in the world’s best selling UJF Series line. This series includes features that enable users – including commercial print service providers, promotional and personalization item printers, makers, technologists, educators and manufacturers – to create specialty items, awards, and personalized products; and for customized ‘just-in-time’ production, component pieces and more.

• Up to 39.4 SqFt/Hr
• Max print area 24” x 16.5”
• Max thickness 6.0”
• Max media weight 17.6 lbs
• Enclosed print area reduces dust contamination
• Mechanical structure reduces vibration for increased ink drop accuracy
• Mimaki Advanced Pass System 4 (MAPS4) technology reduces banding
• New UV-LED curing system delivers high quality results
• Mimaki Circulation Technology (MCT) for White ink prevents settling
• Mimaki Clear Control (MCC) for smoother, cleaner clear effects
• Improved gap check laser sensor for more accurate media detection
• Nozzle Check Unit and Nozzle Recovery System

Print Width: 24" x 16.5"
Speed: 39.4 SqFt/Hr (3.66 SqM/Hr) (max)
Resolution: 1200 DPI (max)
Media Thickness: 6" (153mm)
Media Weight: 17.6lbs (max)
Colors: C, M, Y, K, W, Lc, Lm, Clear
Curing Method: UV
Ink Supply: 1L bottle or 250ml
Print Head: on-demand piezo, 4 staggered printheads
RIP Software: RasterLink6
Interface: USB 2.0 Electrical: AC 100-120V, 1PH, 50/60Hz
Dims (LxWxH): 65.5" x 50.8" x 33.7" x 342 lbs. (130)
