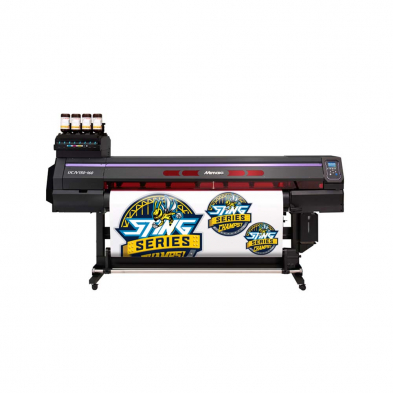

Mimaki UCJV150-160 UV-LED Printer/Cutter - Discontinued

PM-MIM-UCJV150_160

Ea. (1)


This print-and-cut model offers advanced print technologies, plus precision cutting capabilities, allowing you to create signs, posters, banners, labels, decals and more. Its flexible, multi-color UV-LED inks bring the quality, stability and reliability you can trust in an original Mimaki solution.

• Print speeds up to 144 SqFt/Hr
• Up to 1,200 dpi
• Print up to 63.38"

Interested in this product?
POA

Description

Description

The Mimaki UCJV150-160 UV-LED cut-and-print device offers a range of applications and versatility, and affordability. Print and cut – or cut first then print – labels, decals, vehicle markings, packaging prototypes, etc., all on one unit. Flexible 4-color UV cure inks expand the possibilities for you to offer unique capabilities to keep you competitive.

  • Highest media versatility with unparalleled scratch resistance
  • Print-and-cut capability in one unit with new cost and material saving cut functions
  • Best in class for profitability, combining high-quality print with ultra-low running costs
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED ink
  • Peace of mind with available MCS and ICS warranties

Specifications

Specifications

Print Width: 63.4" (1,641mm) (max)
Speed: 169 SqFt/Hr (15.7 SqM/Hr) (max)
Resolution: 1200 DPI (max) Media Thickness 1.0mm or less Roll Weight 88lbs (max)
Colors: C, M, Y, K, Lc, Lm
Curing Method: LED-UV
Ink Types: UV ink Ink Supply: 1L or 250 ml bottles
Print Head: on-demand piezo head
Cut Speed: 11.81" p/sec (300mm) (max)
RIP Software: RasterLink6
Interface: USB 2.0
Electrical: AC 100-120V, 1PH, 50/60Hz
Machine Dimensions (LxWxH): 114" x 31" x 58" x 404 lbs.

Instruction Manual
Specifications

Video

Video

Video

Resources

Resources

Paper Weight/Size

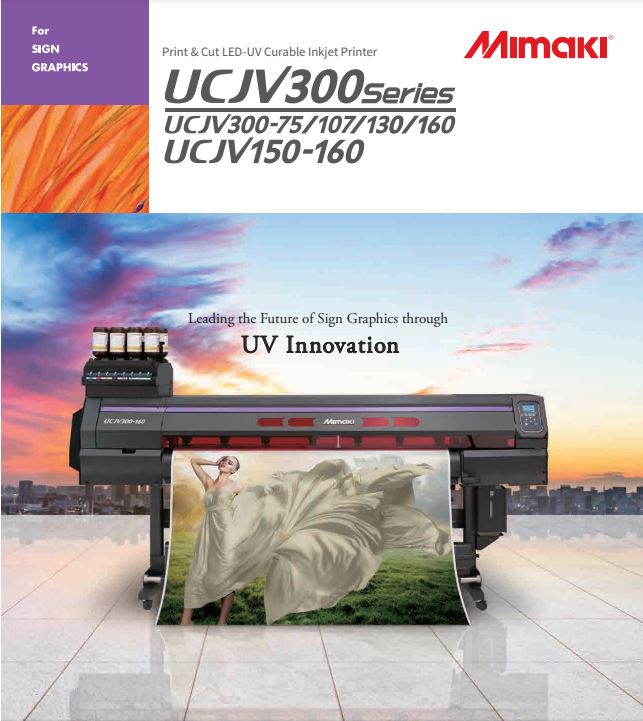

Literature
