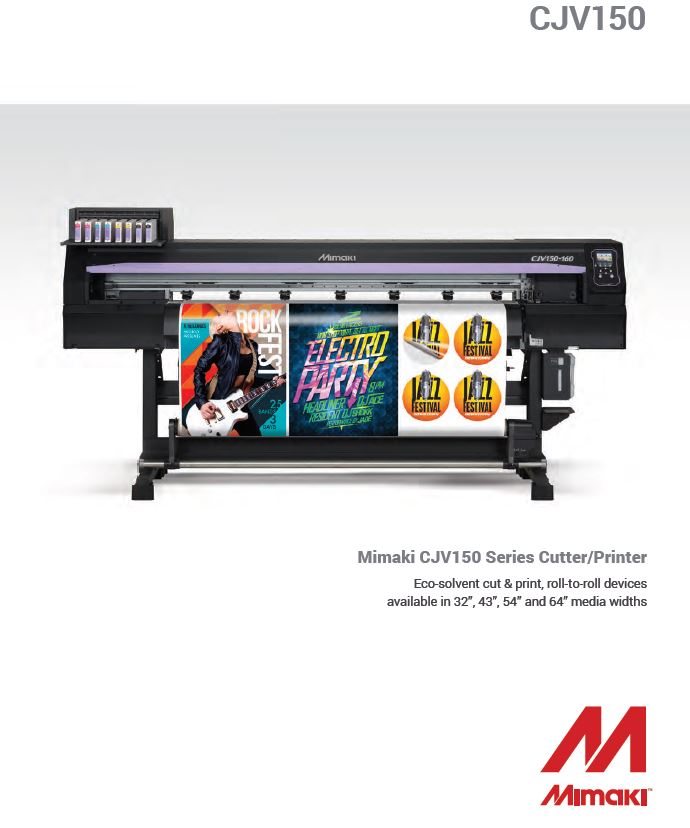

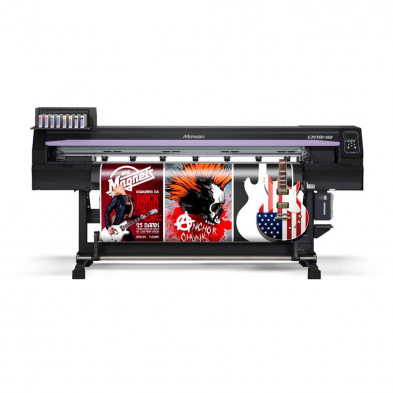

Mimaki CJV150/160 Print & Cut System

CJV150 Series high-speed cut-and-print devices deliver an amazing array of applications in a light production environment. Eco-solvent inks in a variety of colors – including Silver, White, Light Black and Orange – and advanced printing technologies plus precision cutting capability enables delivery of complete campaigns that include signs, posters, banners, labels, decals and even T-shirt transfers. Also available with dye-sublimation inks.

•  Available in 32”, 43”, 54” and 64” models

•  Print speeds up to 605 SqFt/Hr

•  Eco-solvent inks: C, M, Y, K, Lc, Lm, Lk, Si, Or, W

•  Dye-sub inks: C, M, Y, K, Lbl, Lm

• Optional economical 2-liter bulk ink system for long running jobs

• Even ink drying with three-way intelligent heater

• RIP software RasterLink6 included

Print Width: 13.4" (75) 42.9" (107) 53.5" (130) 63.3" (160)
Speed: 605 SqFt/Hr (56.2 SqM/Hr) (max)
Resolution: 1440 DPI (max) Media Thickness 1.0mm or less Roll Weight 88lbs (max)
Colors: C, M, Y, K, W, Lc, Lm, Lk, Or, Si
Curing Method: Solvent Ink
Types: Eco-solvent, Solvent, & Sublimation Ink
Supply: 2L bottle or 440ml/220ml cartridges
Print Head: on-demand piezo head Cut Speed 11.8" per sec (max) RIP
Software: RasterLink6
Interface: USB 2.0
Electrical: AC 100-120V, 1PH, 50/60Hz DIMs (LxWxH): 77 x 28" x 55" x 278 lbs. (75) 89 x 28" x 55" x 313 lbs. (107) 99" x 28" x 55" x 346 lbs. (130) 109" x 28" x 55" x 370 lbs. (160)
