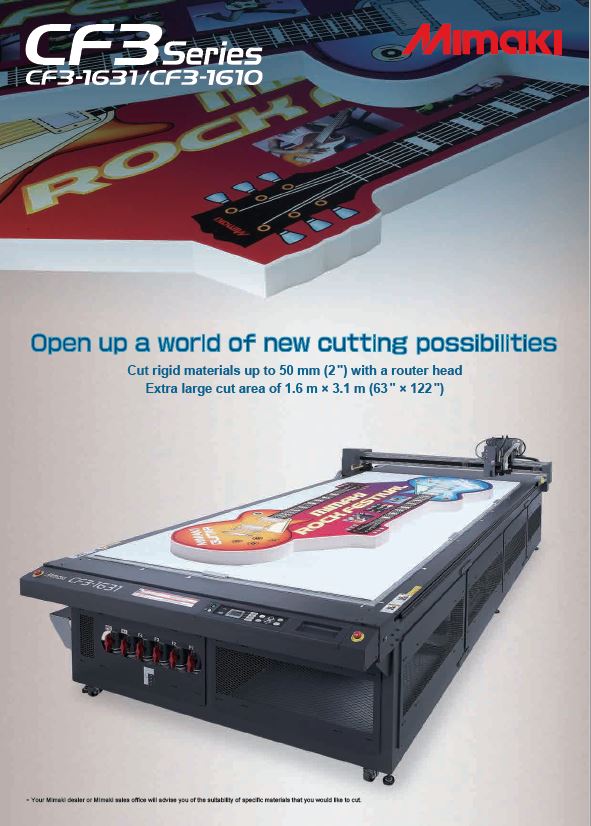

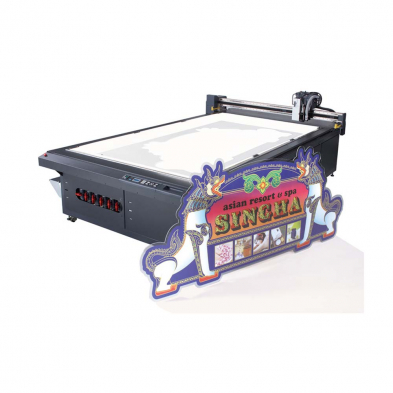

Mimaki CF3-1631 Plotter / Cutter - Discontinued

Supports both small and large size media up to 1.6m x 3.1m (63" x 122"). Even difficult acrylic or aluminum composite panels can be cut with consistently high accuracy. User exchangeable cutting heads to suit a wide range of conditions widen your possibilities greatly.

• 63”x122” cutting area
• Cut up to 21.7” per sec.
• Dual vacuum zones
• Blower function to easily handle heavy materials
• Self cleaning table surface

Plotting Area: 63" W x 122" L (1600 x 3100mm) (max)
Plotting Speed: 19.6"/s (50 cm/s) (max)
Motorization: X/Y/Z/Θ axis: DC servo Motor
Tool Types: Reciprocal, Tangential, Pen/swivel, Creasing roller
Work Fixation: Vacuum suction
Cutting Head: RC head
Software: FineCut 8
Interface: USB 2.0
Electrical: 200-240V, 1PH, 50/60Hz
DIMs (LxWxH): 173.2" x 166.4" x 49.2" x 1,433 lbs.
