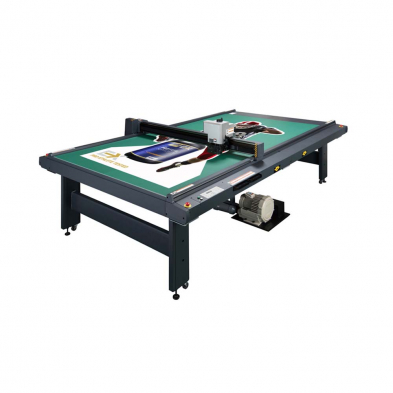

Mimaki CF22-1225 Plotter / Cutter - Discontinued

The CF22-1225 cutting plotter is based on the proven Mimaki CF2 platform. The new CF22-1225 features a work area that can accommodate oversized media and allows a full 4-foot by 8-foot maximum cut size so print service providers can move materials directly from a standard flatbed printer.

•  4-foot by 8-foot cutting area

•  Ideal companion to JFX200-2513 UV-LED flatbed printer

•  Multiple cutting head and tool holder configurations

•  Cut a variety of materials up to 20 mm thick

Plotting Area: 98.4" W x 48" L (2500 x 1220mm) (max)
Plotting Speed: 21.65"per sec (55cm/sec) (max)
Motorization: X/Y/Z/Θ axis: DC servo Motor
Tool Types: Reciprocal, Tangential, Pen/swivel, Creasing roller
Work Fixation: Vacuum suction Cutting Head: RC head
Software: ArtiosCAD
Interface: USB 2.0 Electrical: 200-240V, 1PH, 50/60Hz
DIMs (LxWxH): 173.2" x 166.4" x 49.2" x 1,433 lbs.
